SS50 Yellow LED Light Bar
Product Description
Go bold in poor weather with the Diode Dynamics SS50 Yellow LED Light Bar. This 50-inch Stage Series bar delivers deep yellow illumination (≈ 3000K) to cut through fog, rain, and dust, providing high contrast when you need it most. Engineered with slim, efficient design and premium TIR optics, it balances wide coverage and focused distance lighting — all while preserving a low 42 mm profile. Perfect for anyone wanting both serious auxiliary output and style in one bar.
Included
- One (1) LED light bar
- One (1) wire pigtail
- Universal bracket set
Product Features
- Patented TIR Optics for maximum efficiency and output.
- Upgraded beam patterns engineered for real-world performance.

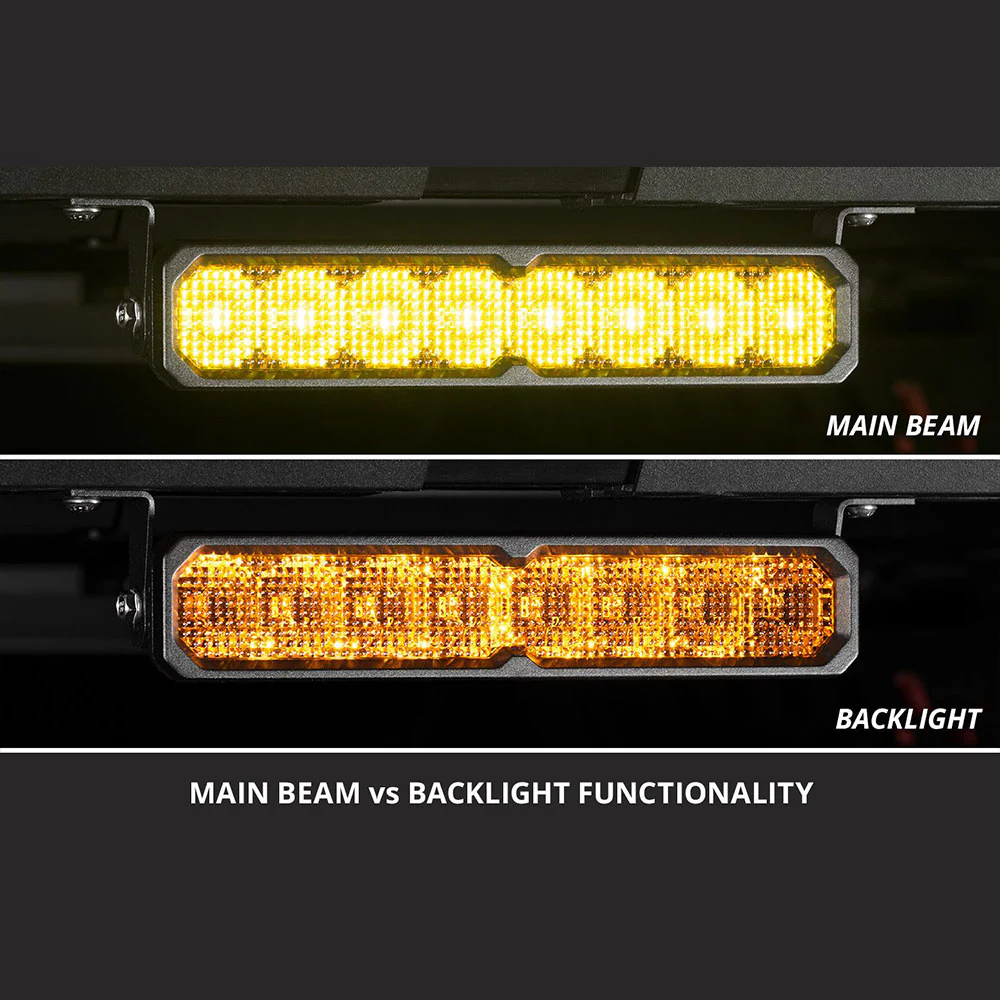

- Modern welcome sequence and selectable backlight color with SmartSelect technology.

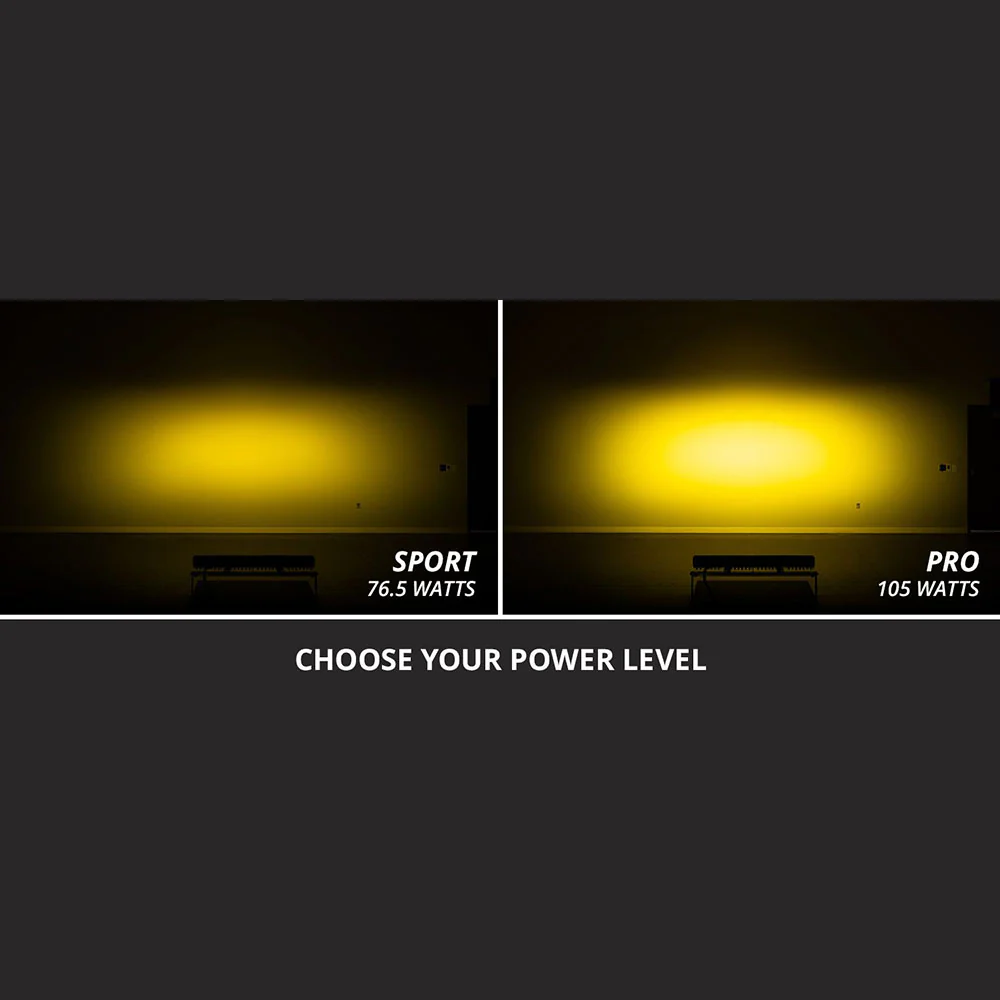

- Now available in Sport and Pro power levels.
- Durable aluminum housing with ASTM-standard powdercoat finish.
- Built for the extreme with IP69K waterproof rating.
Product Specs
- Color Temp (CCT): 3000K

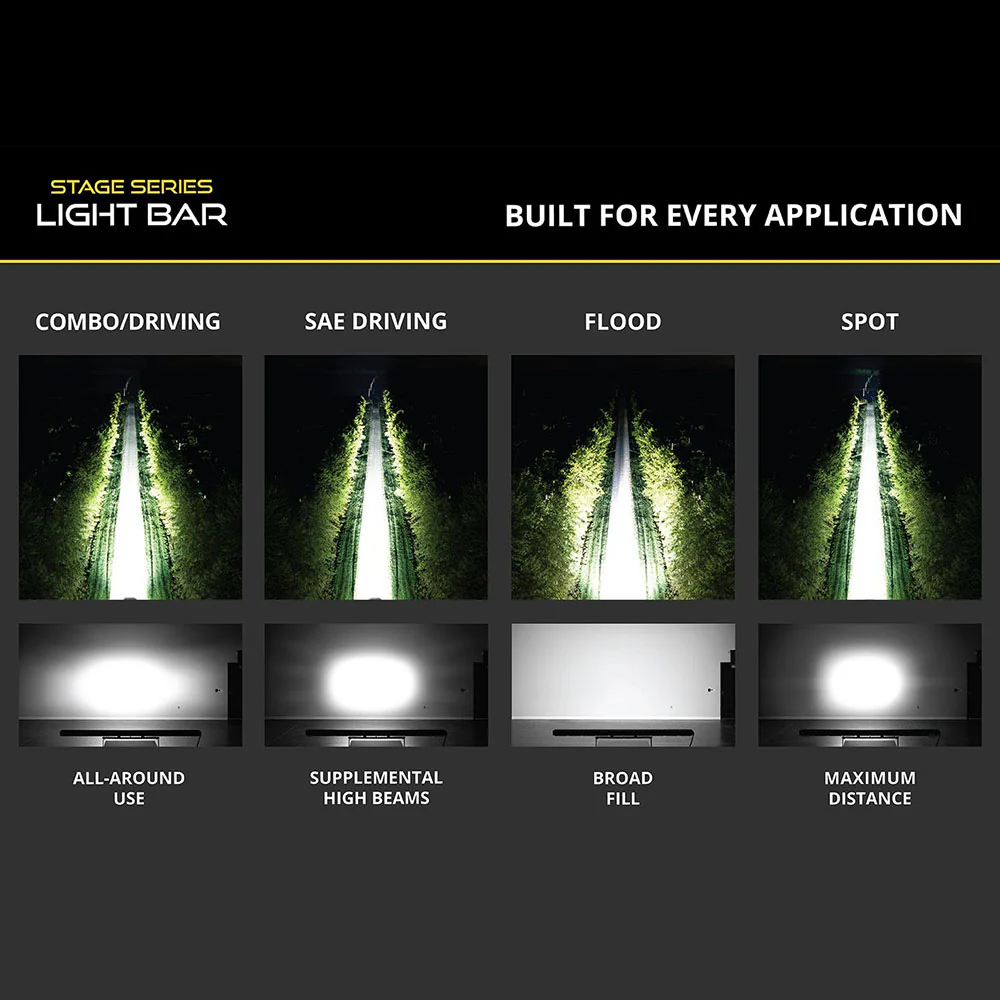

- Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°, Flood, 100°x80°, Spot, 8°x8°
- Power (watts): Sport: 212, Pro: 295
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 16.56, Pro: 23.05
- Polarity: Polarity Specific Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT-P Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure
- Product Dimensions (in): 2.01x51.63x2.46
| Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SAE Driving Sport | 315,000 cd | 3,150 lux | 18,440 lm | 3000K |
| SAE Driving Pro | 415,000 cd | 4,150 lux | 62,720 lm | 3000K |
| Flood Sport | 9,500 cd | 95 lux | 18,440 lm | 3000K |
| Flood Pro | 17,000 cd | 170 lux | 62,720 lm | 3000K |
| Combo Sport | 215,500 cd | 2,155 lux | 18,440 lm | 3000K |
| Combo Pro | 294,500 cd | 2,945 lux | 62,720 lm | 3000K |
| Spot Sport | 761,000 cd | 7,610 lux | 18,440 lm | 3000K |
| Spot Pro | 835,000 cd | 8,350 lux | 62,720 lm | 3000K |
Original: $999.95
-65%$999.95
$349.98More Images
