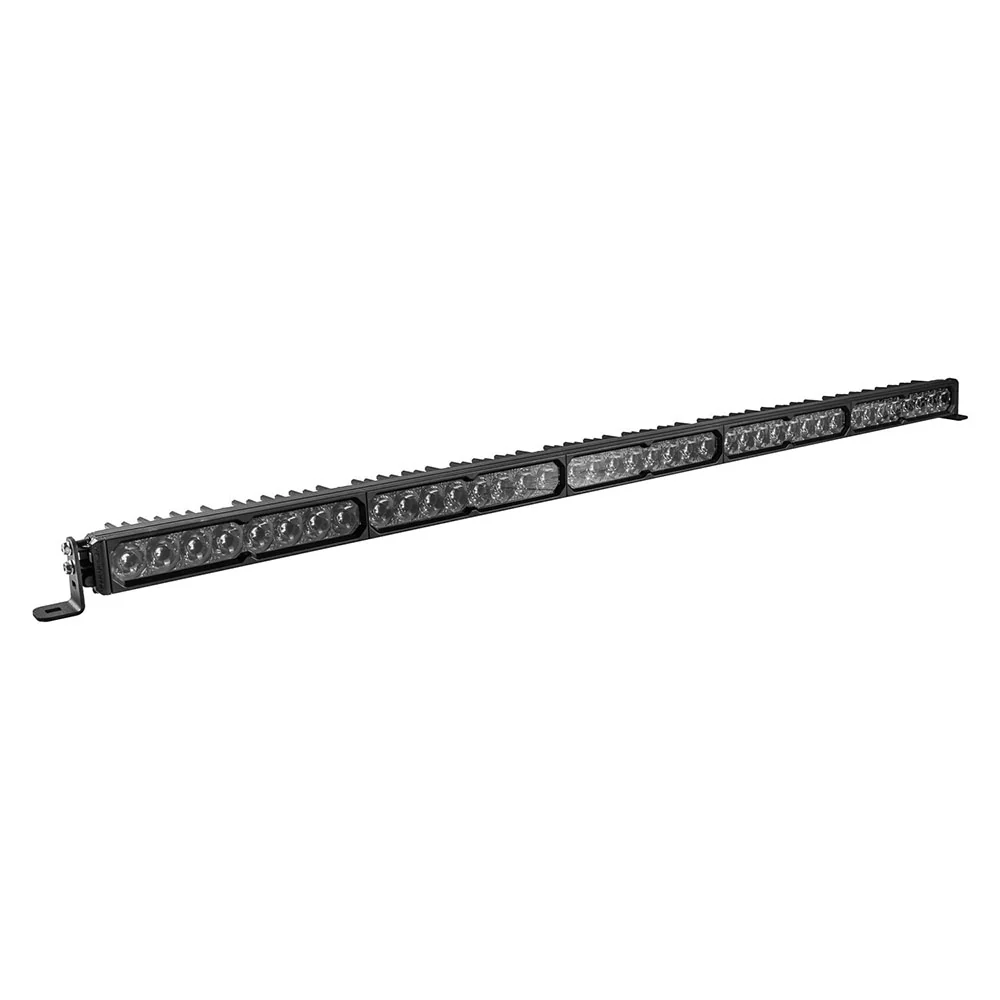

SS50 White LED Light Bar
Product Description
Light up the longest stretches with the Diode Dynamics SS50 White LED Light Bar. At 50", it combines slim design and high performance, offering a powerful and efficient beam thanks to its custom TIR optics. Despite its size, it maintains a low profile (under 42 mm) and is engineered to minimize wind noise. Designed for auxiliary or off-road use, it delivers a balanced combo lighting pattern that offers both distance and spread. Perfect for roof racks, bumper installs, or any spot where a long bar offers an advantage.
Included
- One (1) LED light bar
- One (1) wire pigtail
- Universal bracket set
Product Features
- Patented TIR Optics for maximum efficiency and output.
- Upgraded beam patterns engineered for real-world performance.
- Modern welcome sequence and selectable backlight color with SmartSelect technology.
- Now available in Sport and Pro power levels.
- Durable aluminum housing with ASTM-standard powdercoat finish.
- Built for the extreme with IP69K waterproof rating.

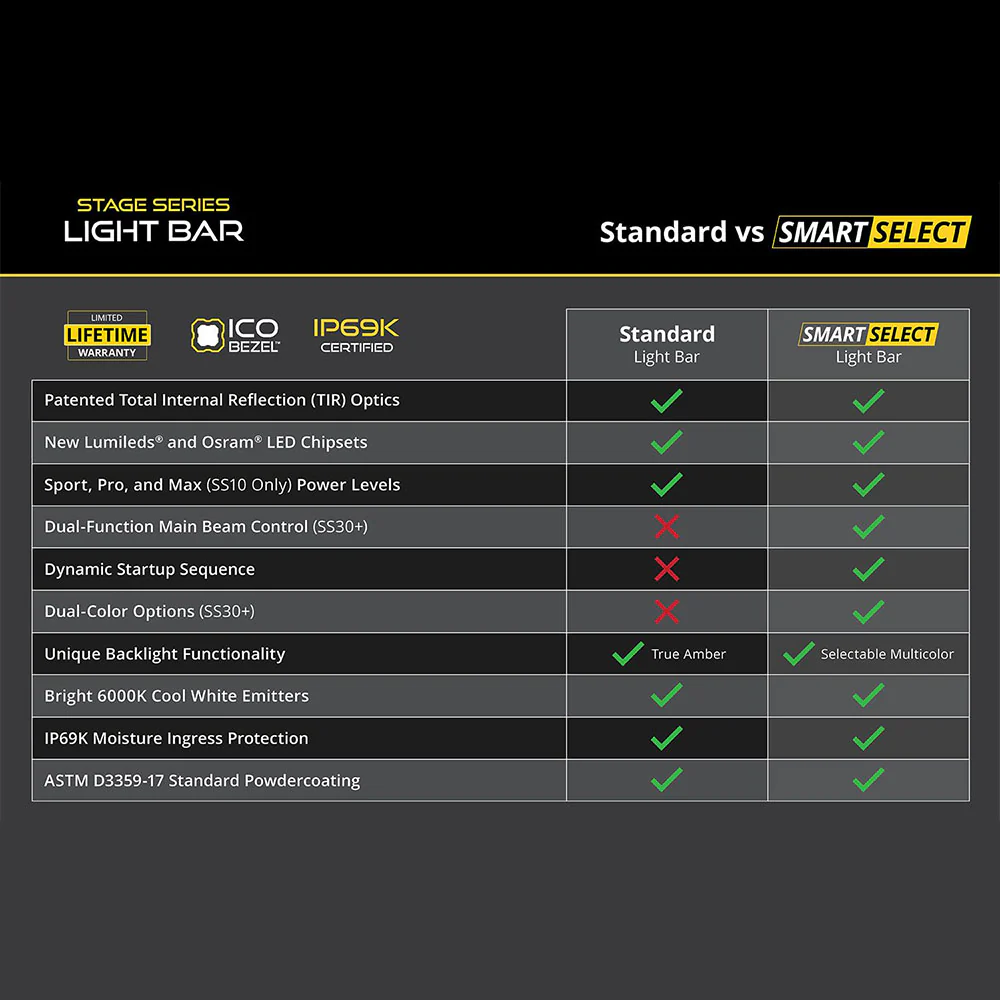

SmartSelect vs Standard

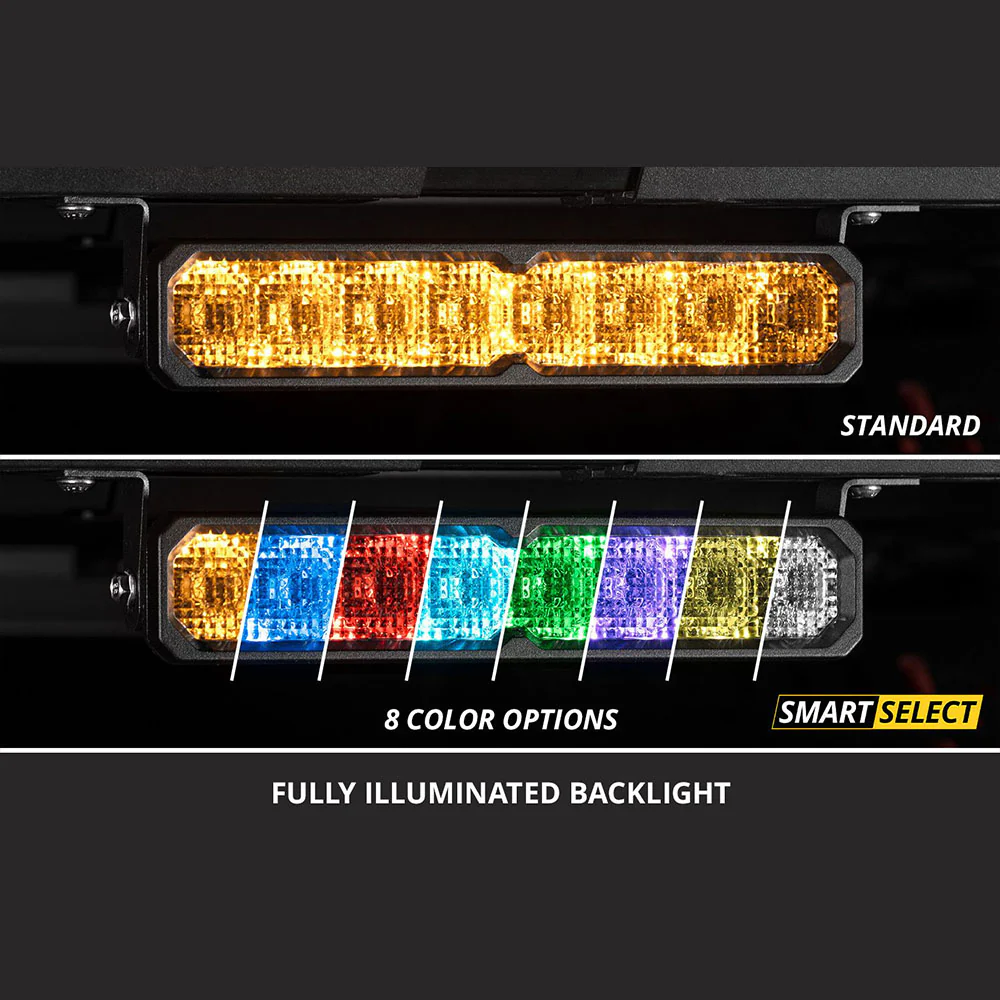

- SmartSelect models feature a selectable multicolor backlight in your choice of eight colors, plus a dynamic startup sequence that activates every time you power it on. The amber backlight color selection has been upgraded to a dedicated amber chip, part of a full RGBWA series of LEDs, which perfectly matches the color of our smaller LED pods. This elevates the appearance far above other RGB or RGBW backlights on the market. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller!
- Standard models feature an amber-only backlight with no startup sequence. It provides a unique look and is perfect for forward-facing applications to provide extra visibility to others when stopped on the trail.
Product Specs
- Color Temp (CCT): 6000K
- Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°, Flood, 100°x80°, Spot, 8°x8°
- Power (watts): Sport: 212, Pro: 295
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 16.56, Pro: 23.05
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT-P Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure
- Product Dimensions (in): 2.01x51.63x2.46
| Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SAE Driving Sport | 375,000 cd | 3,750 lux | 18,440 lm | 6000K White |
| SAE Driving Pro | 490,000 cd | 4,900 lux | 62,720 lm | 6000K White |
| Flood Sport | 12,500 cd | 125 lux | 18,440 lm | 6000K White |
| Flood Pro | 22,000 cd | 220 lux | 62,720 lm | 6000K White |
| Combo Sport | 278,500 cd | 2,785 lux | 18,440 lm | 6000K White |
| Combo Pro | 380,000 cd | 3,800 lux | 62,720 lm | 6000K White |
| Spot Sport | 906,000 cd | 9,060 lux | 18,440 lm | 6000K White |
| Spot Pro | 1,020,000 cd | 10,200 lux | 62,720 lm | 6000K White |
Select Beam Pattern
Select Power Level
Select Kit Style
From $349.98
Original: $999.95
-65%SS50 White LED Light Bar—
$999.95
$349.98More Images
SS50 White LED Light Bar
Product Description
Light up the longest stretches with the Diode Dynamics SS50 White LED Light Bar. At 50", it combines slim design and high performance, offering a powerful and efficient beam thanks to its custom TIR optics. Despite its size, it maintains a low profile (under 42 mm) and is engineered to minimize wind noise. Designed for auxiliary or off-road use, it delivers a balanced combo lighting pattern that offers both distance and spread. Perfect for roof racks, bumper installs, or any spot where a long bar offers an advantage.
Included
- One (1) LED light bar
- One (1) wire pigtail
- Universal bracket set
Product Features
- Patented TIR Optics for maximum efficiency and output.
- Upgraded beam patterns engineered for real-world performance.
- Modern welcome sequence and selectable backlight color with SmartSelect technology.
- Now available in Sport and Pro power levels.
- Durable aluminum housing with ASTM-standard powdercoat finish.
- Built for the extreme with IP69K waterproof rating.
SmartSelect vs Standard
- SmartSelect models feature a selectable multicolor backlight in your choice of eight colors, plus a dynamic startup sequence that activates every time you power it on. The amber backlight color selection has been upgraded to a dedicated amber chip, part of a full RGBWA series of LEDs, which perfectly matches the color of our smaller LED pods. This elevates the appearance far above other RGB or RGBW backlights on the market. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller!
- Standard models feature an amber-only backlight with no startup sequence. It provides a unique look and is perfect for forward-facing applications to provide extra visibility to others when stopped on the trail.
Product Specs
- Color Temp (CCT): 6000K
- Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°, Flood, 100°x80°, Spot, 8°x8°
- Power (watts): Sport: 212, Pro: 295
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 16.56, Pro: 23.05
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT-P Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure
- Product Dimensions (in): 2.01x51.63x2.46
| Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SAE Driving Sport | 375,000 cd | 3,750 lux | 18,440 lm | 6000K White |
| SAE Driving Pro | 490,000 cd | 4,900 lux | 62,720 lm | 6000K White |
| Flood Sport | 12,500 cd | 125 lux | 18,440 lm | 6000K White |
| Flood Pro | 22,000 cd | 220 lux | 62,720 lm | 6000K White |
| Combo Sport | 278,500 cd | 2,785 lux | 18,440 lm | 6000K White |
| Combo Pro | 380,000 cd | 3,800 lux | 62,720 lm | 6000K White |
| Spot Sport | 906,000 cd | 9,060 lux | 18,440 lm | 6000K White |
| Spot Pro | 1,020,000 cd | 10,200 lux | 62,720 lm | 6000K White |
