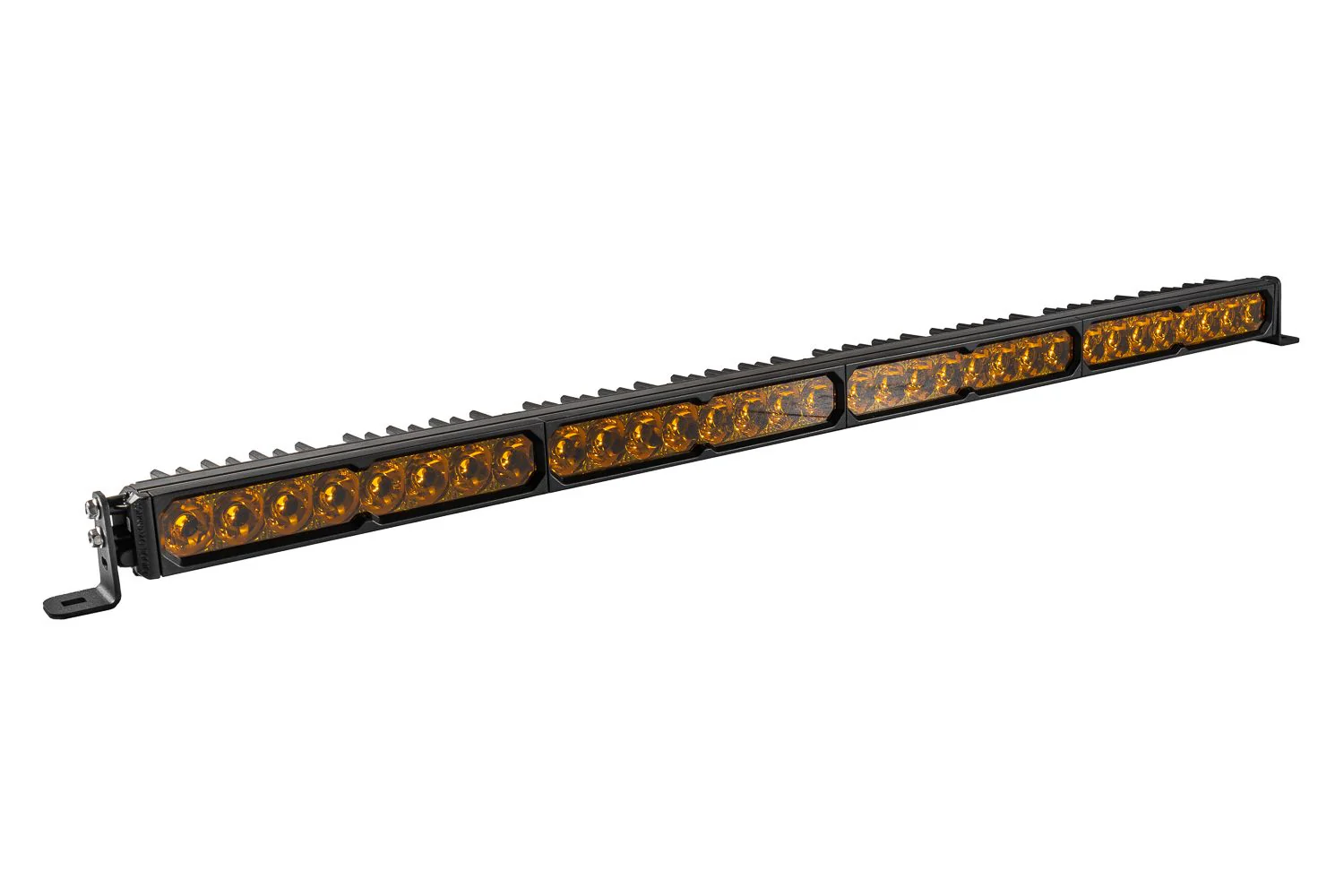

SS40 Yellow LED Light Bar
Product Description
Stand out in fog, snow, or off-highway dust with the Diode Dynamics SS40 Yellow LED Light Bar. Emitting yellow (~ 3000 K), this bar enhances contrast and cuts through glare while maintaining a slim, aggressive profile. Built rugged and sealed, it’s designed for grille, bumper, or roof applications where both style and performance matter. Switch the lighting mood depending on conditions — powerful in daylight, precise in poor weather.
Included
- One (1) LED light bar
- One (1) wire pigtail
- Universal bracket set
Product Features

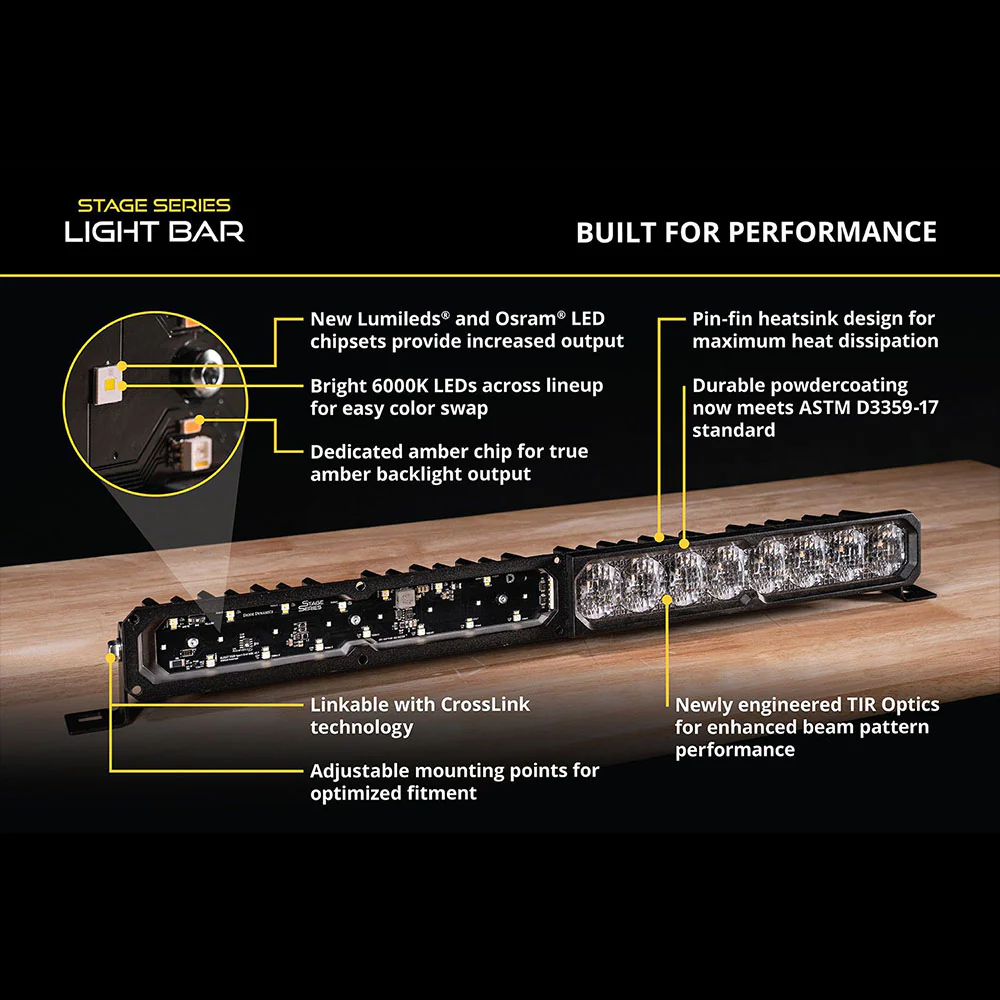

- Patented TIR Optics for maximum efficiency and output.
- Upgraded beam patterns engineered for real-world performance.

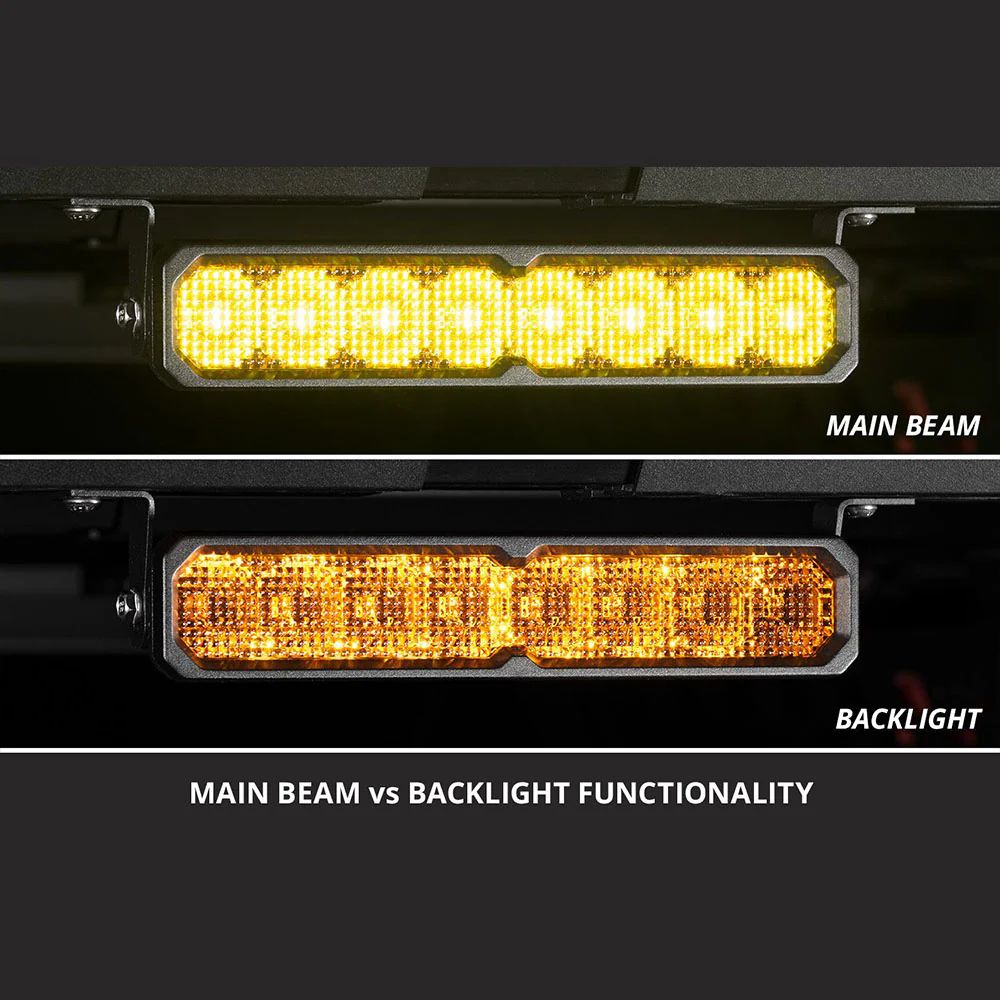

- Modern welcome sequence and selectable backlight color with SmartSelect technology.
- Now available in Sport and Pro power levels.
- Durable aluminum housing with ASTM-standard powdercoat finish.
- Built for the extreme with IP69K waterproof rating.
Product Specs
- Color Temp (CCT): 3000K
- Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°, Flood, 100°x80°, Spot, 8°x8°
- Power (watts): Sport: 165, Pro: 225
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 12.90, Pro: 17.58
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT-P Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure

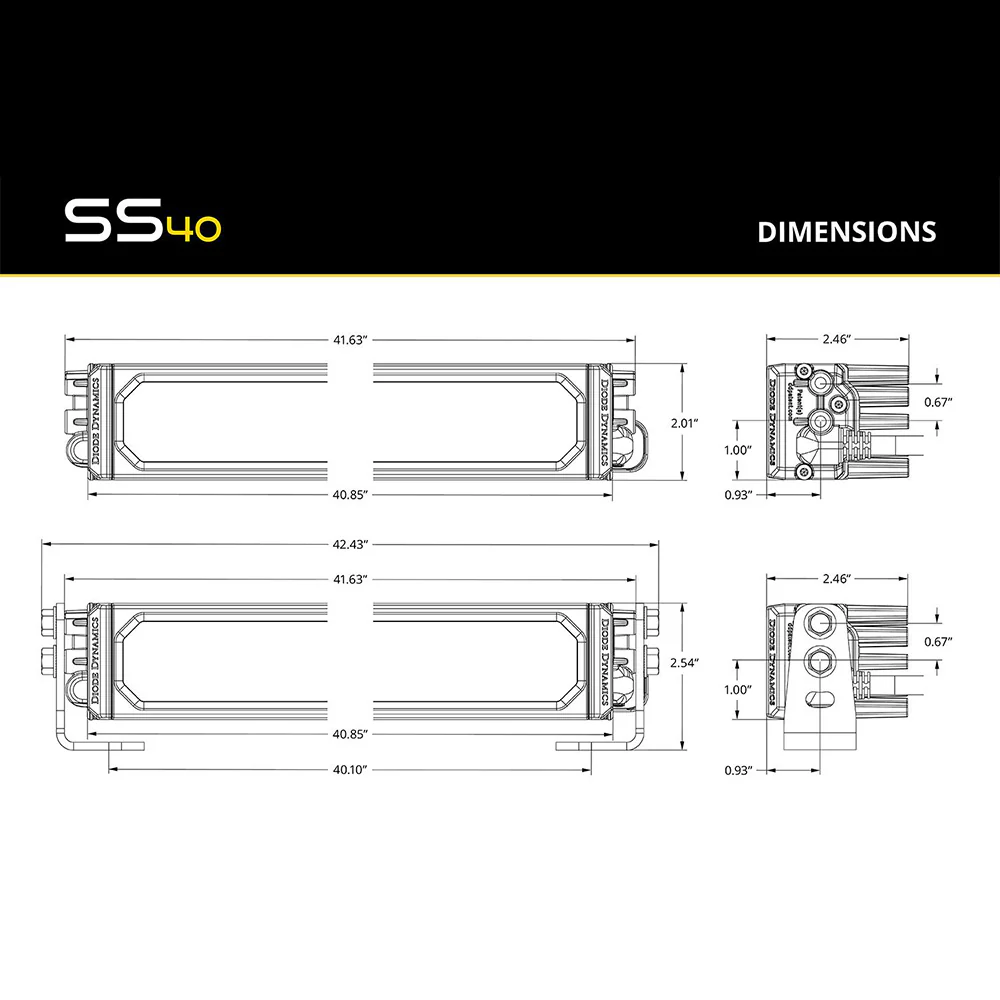

- Product Dimensions (in): 2.01x41.63x2.46
| Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SAE Driving Sport | 250,500 cd | 2,505 lux | 14,752 lm | 3000K |
| SAE Driving Pro | 331,000 cd | 3,310 lux | 50,176 lm | 3000K |
| Flood Sport | 7,800 cd | 78 lux | 14,752 lm | 3000K |
| Flood Pro | 13,500 cd | 135 lux | 50,176 lm | 3000K |
| Combo Sport | 158,000 cd | 1,580 lux | 14,752 lm | 3000K |
| Combo Pro | 215,000 cd | 2,150 lux | 50,176 lm | 3000K |
| Spot Sport | 608,000 cd | 6,080 lux | 14,752 lm | 3000K |
| Spot Pro | 665,000 cd | 6,650 lux | 50,176 lm | 3000K |
