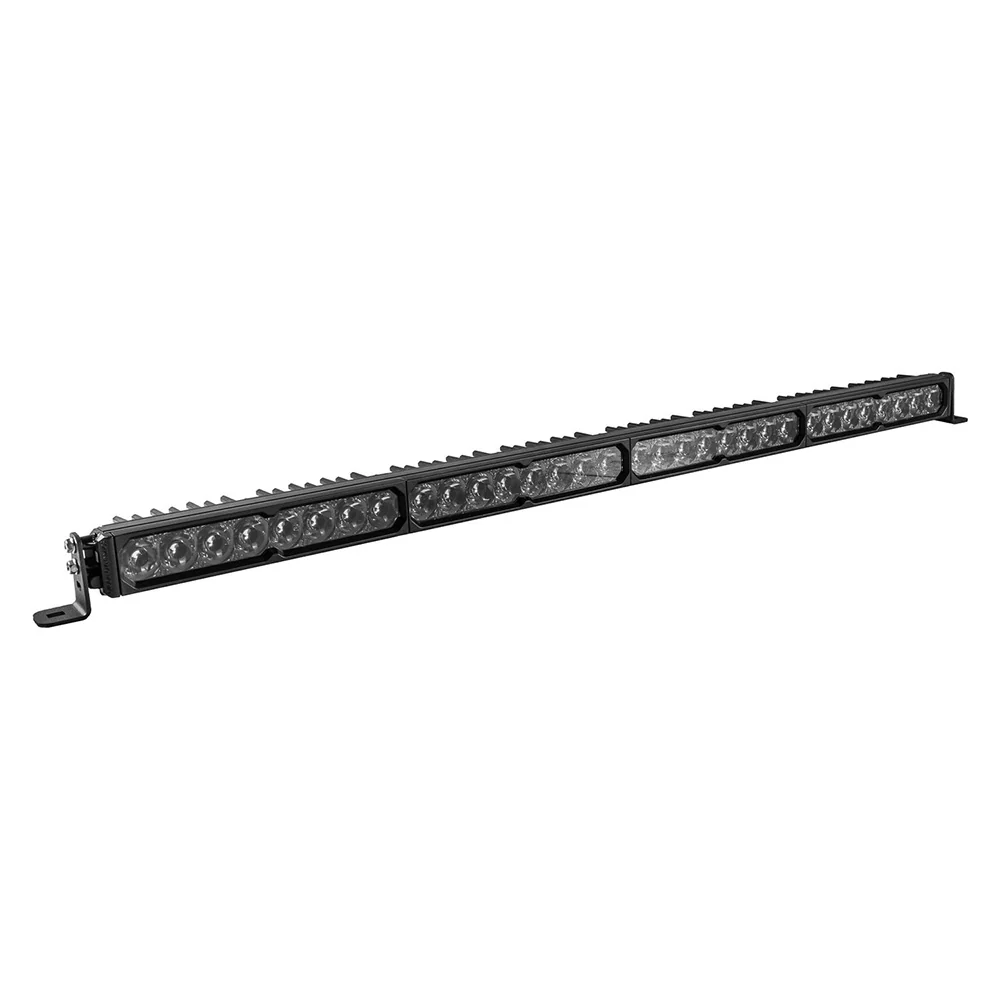

SS40 White LED Light Bar
Product Description

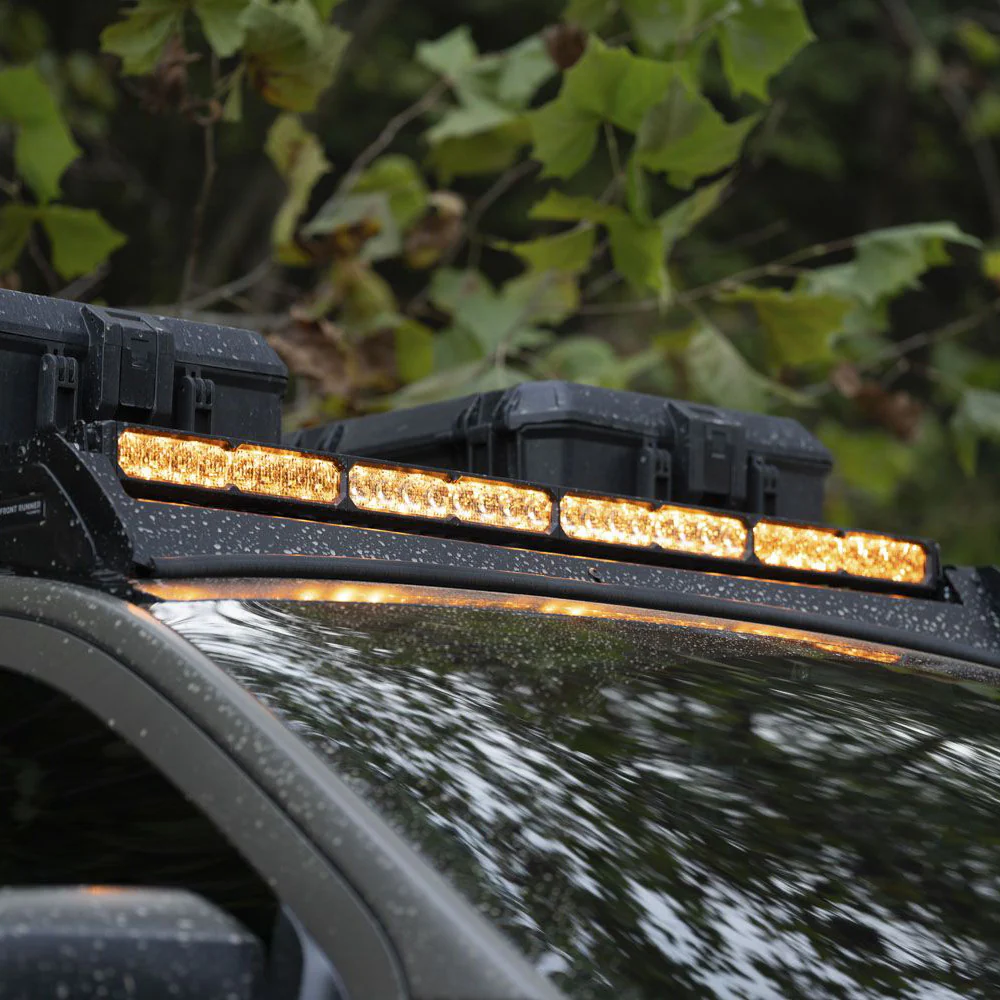

Illuminate the path ahead with the Diode Dynamics SS40 White LED Light Bar — a high-output, low-profile solution for serious lighting upgrades. With refined TIR optics and rugged construction, it provides sharp, usable light without unnecessary glare. Whether mounted on a roof rack, bumper, or grille, the SS40 blends power and versatility. Built to endure the elements, it’s ready for trail, road, or adventure duty.
Included
- One (1) LED light bar
- One (1) wire pigtail
- Universal bracket set

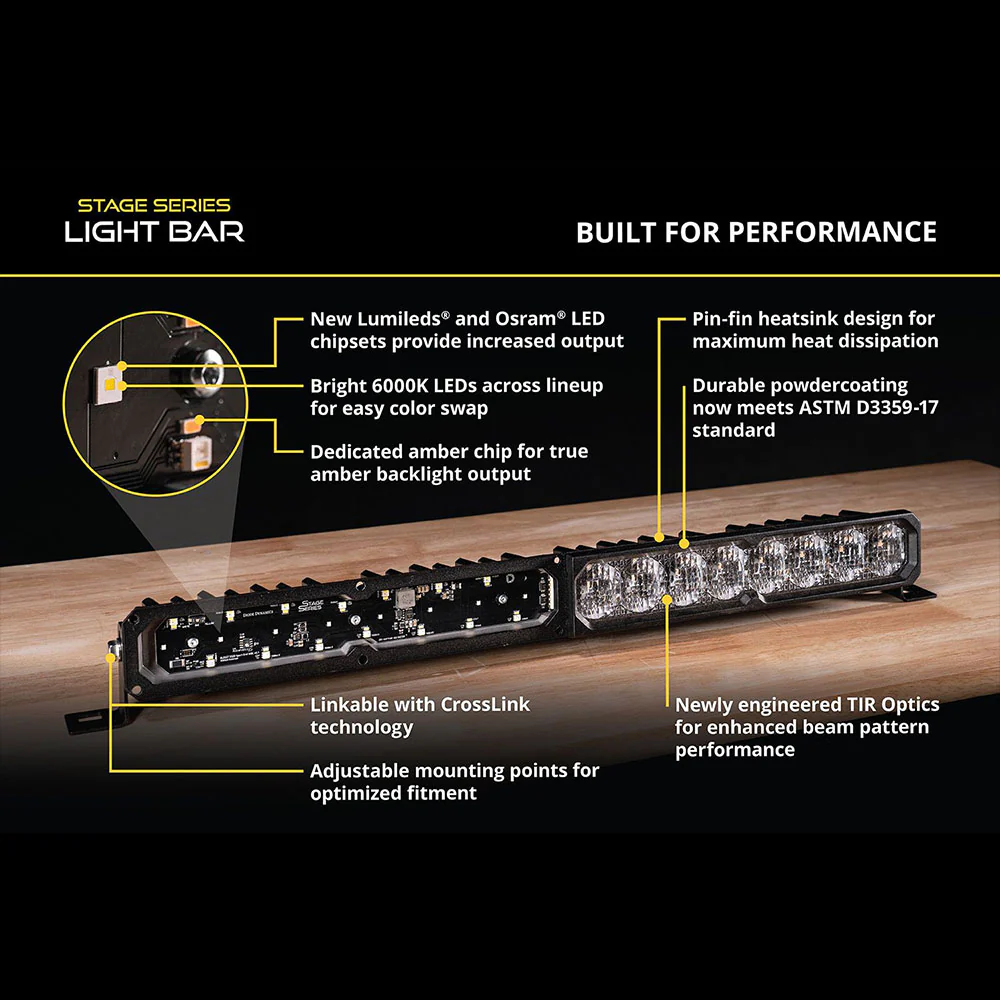

Product Features
- Patented TIR Optics for maximum efficiency and output.
- Upgraded beam patterns engineered for real-world performance.
- Modern welcome sequence and selectable backlight color with SmartSelect technology.
- Now available in Sport and Pro power levels.
- Durable aluminum housing with ASTM-standard powdercoat finish.
- Built for the extreme with IP69K waterproof rating.

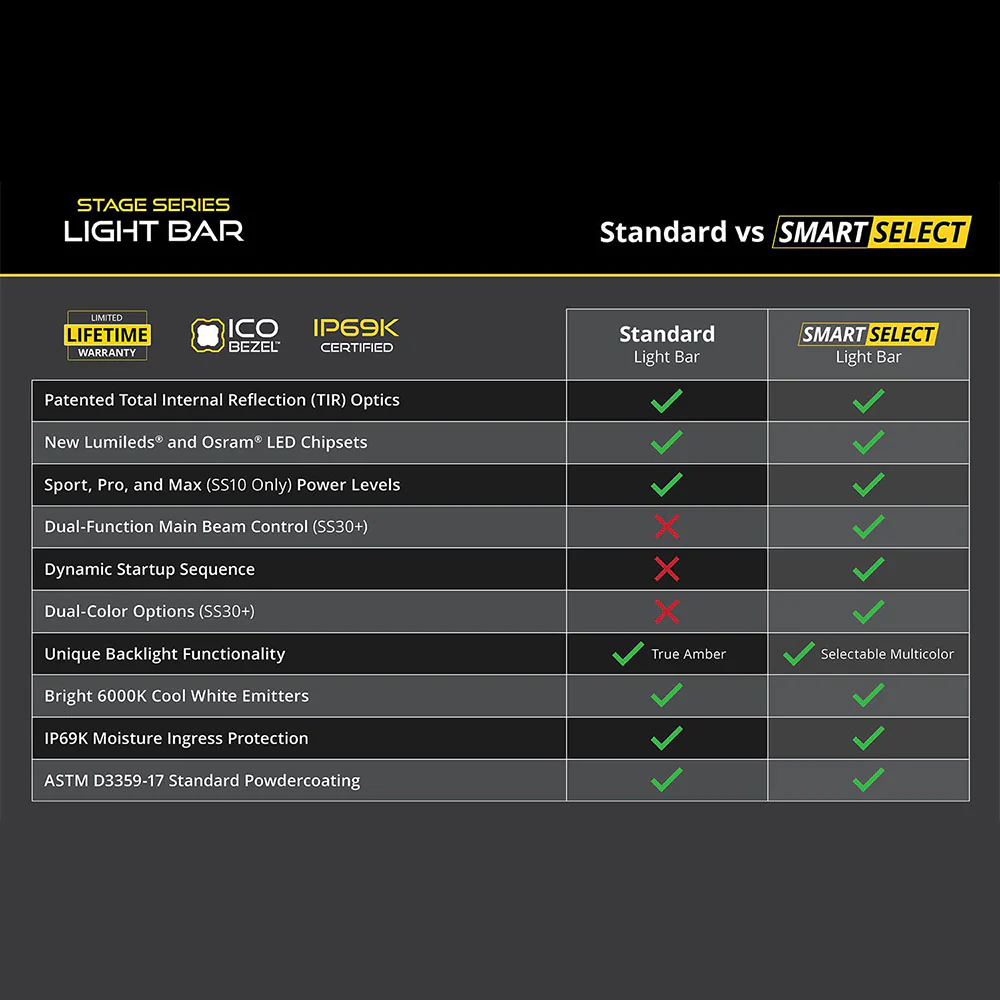

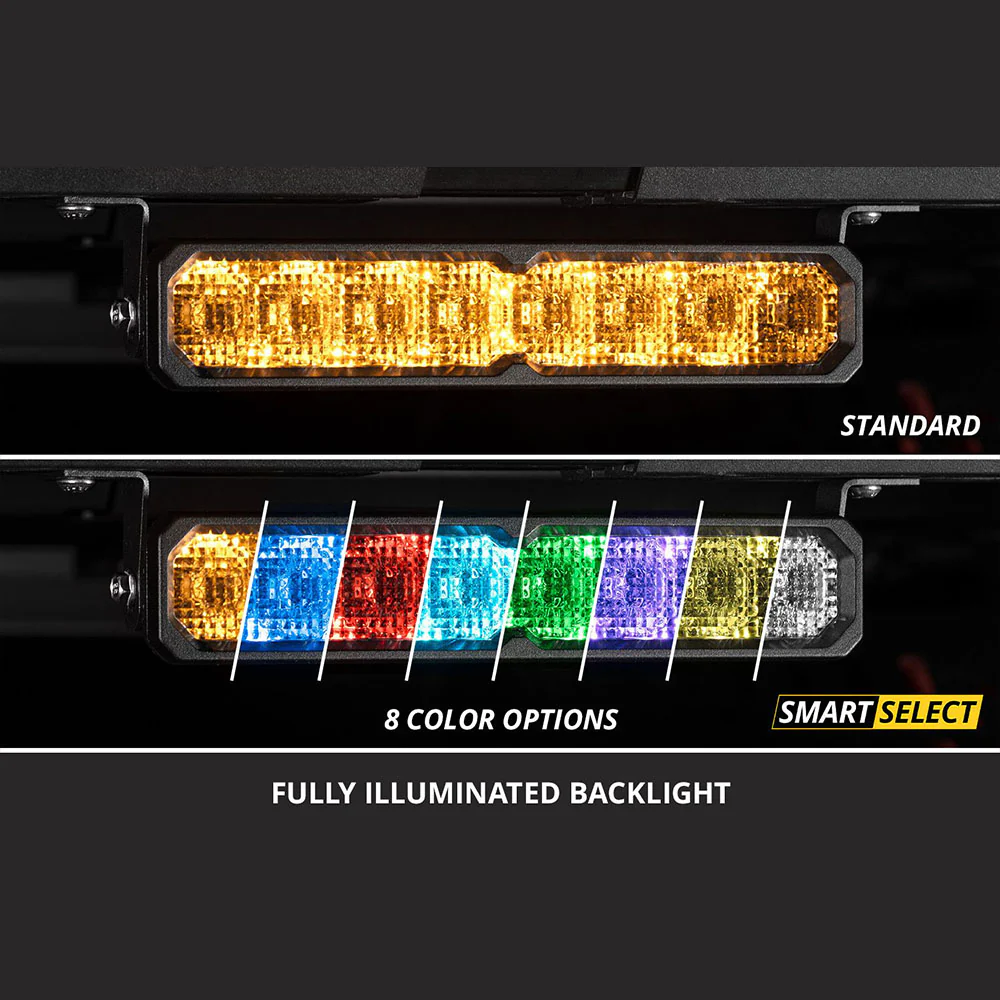

SmartSelect vs Standard
- SmartSelect models feature a selectable multicolor backlight in your choice of eight colors, plus a dynamic startup sequence that activates every time you power it on. The amber backlight color selection has been upgraded to a dedicated amber chip, part of a full RGBWA series of LEDs, which perfectly matches the color of our smaller LED pods. This elevates the appearance far above other RGB or RGBW backlights on the market. Selecting your backlight color is easy - simply alternate the power on and off. There’s no complicated programming with a controller!
- Standard models feature an amber-only backlight with no startup sequence. It provides a unique look and is perfect for forward-facing applications to provide extra visibility to others when stopped on the trail.
Product Specs
- Color Temp (CCT): 6000K
- Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°, Flood, 100°x80°, Spot, 8°x8°
- Power (watts): Sport: 165, Pro: 225
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 12.90, Pro: 17.58
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT-P Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure

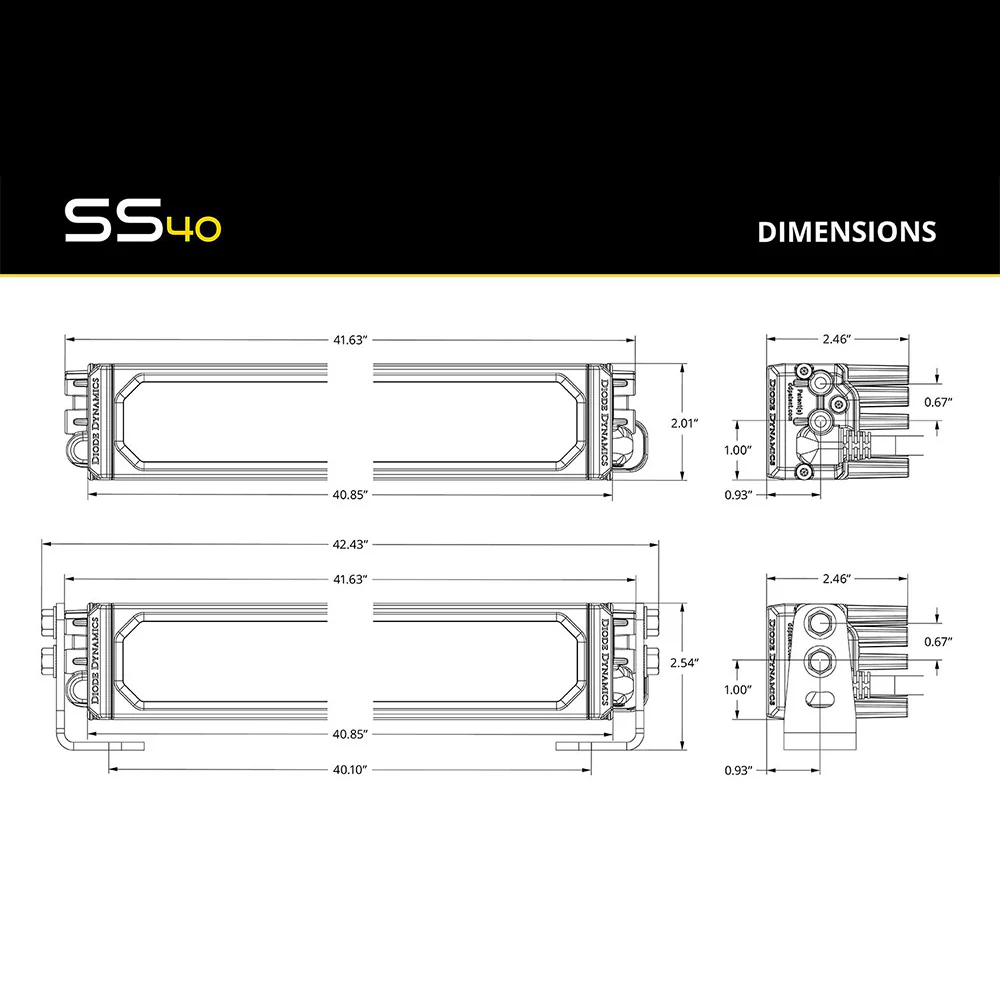

- Product Dimensions (in): 2.01x41.63x2.46
| Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SAE Driving Sport | 300,000 cd | 3,000 lux | 14,752 lm | 6000K White |
| SAE Driving Pro | 394,500 cd | 3,945 lux | 50,176 lm | 6000K White |
| Flood Sport | 10,000 cd | 100 lux | 14,752 lm | 6000K White |
| Flood Pro | 17,500 cd | 175 lux | 50,176 lm | 6000K White |
| Combo Sport | 204,000 cd | 2,040 lux | 14,752 lm | 6000K White |
| Combo Pro | 281,000 cd | 2,810 lux | 50,176 lm | 6000K White |
| Spot Sport | 722,500 cd | 7,225 lux | 14,752 lm | 6000K White |
| Spot Pro | 795,000 cd | 7,950 lux | 50,176 lm | 6000K White |
