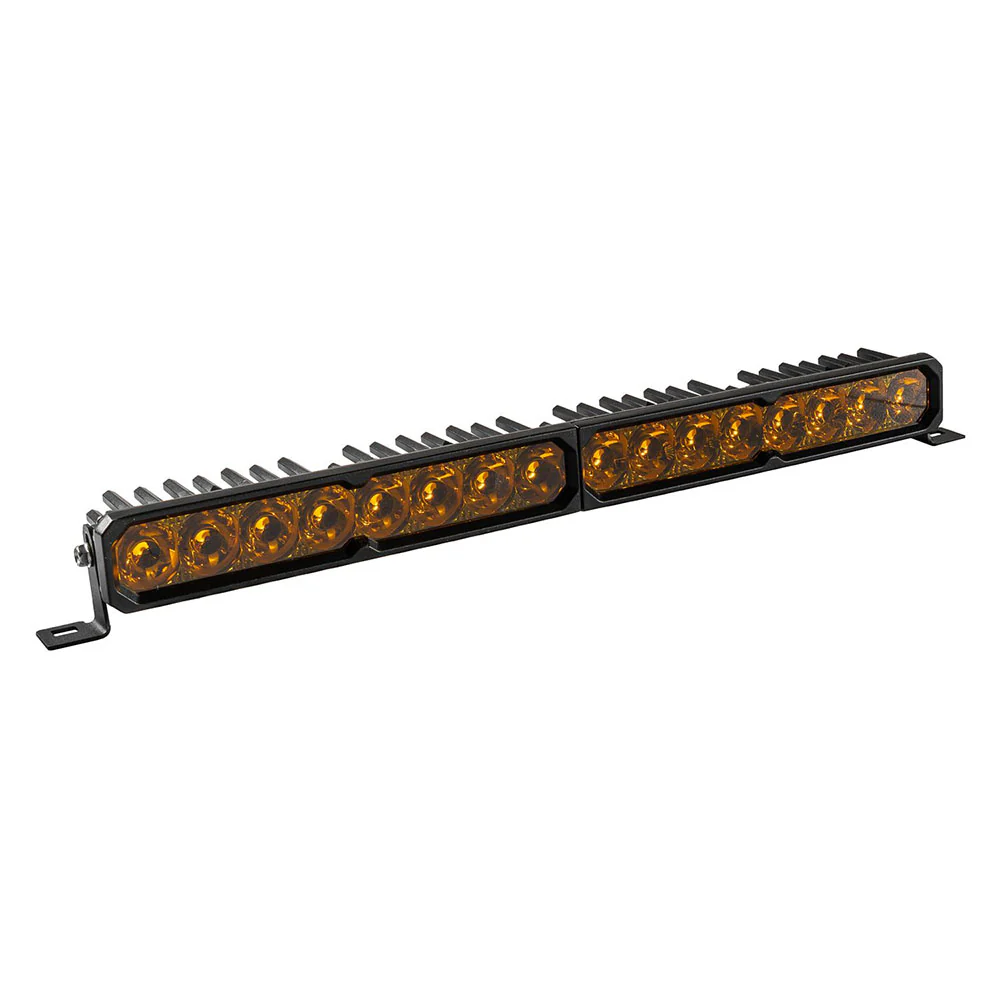

SS20 Yellow LED Light Bar
Product Description
Bring contrast to fog, snow, and dust with the SS20 Yellow LED Light Bar by Diode Dynamics. Its yellow output (≈ 3000 K) improves visibility and cuts glare in harsh/weather conditions, while the slim form factor lets you mount it in tight spaces without obstructing styling. Built with rugged construction and advanced optics, it’s ideal for grille mounts, rock lights, or auxiliary placements where color and utility matter. Perfect for off-road rigs that demand function and form.
Included
- One (1) LED light bar
- One (1) wire pigtail
- Universal bracket set

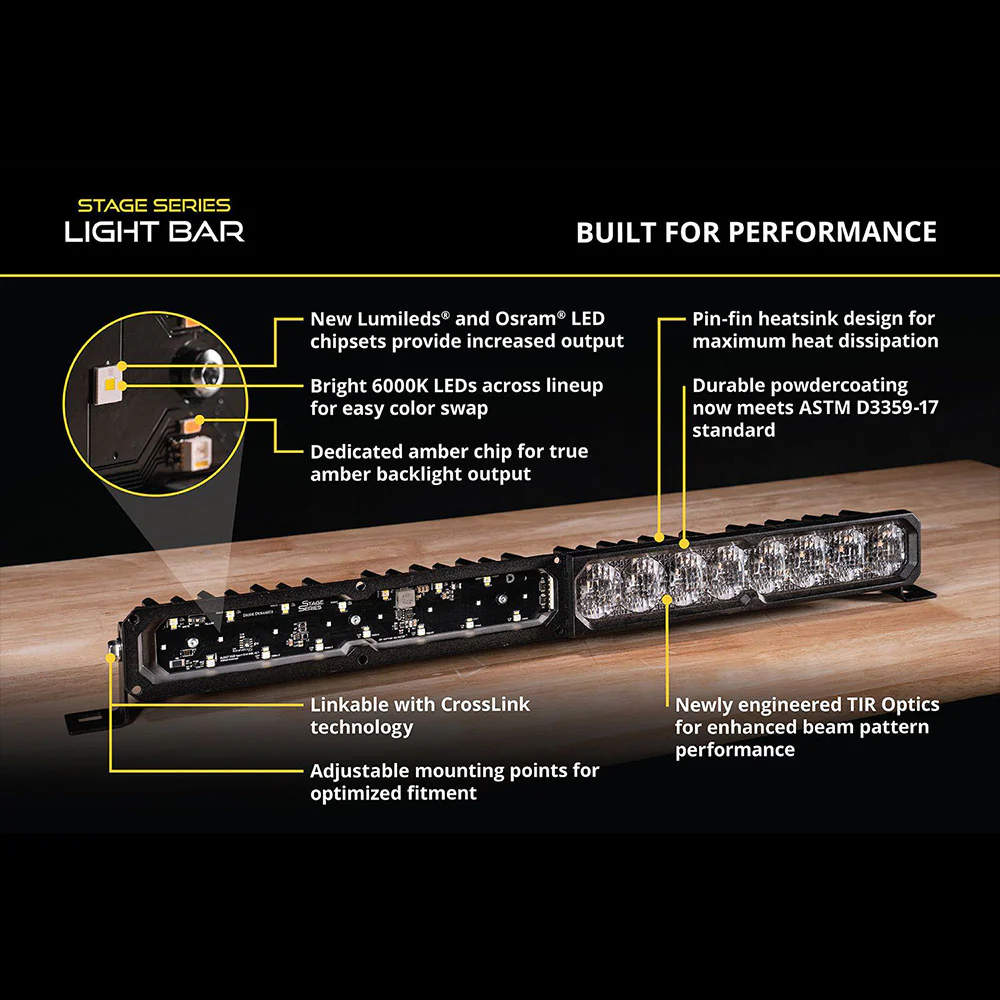

Product Features
- Patented TIR Optics for maximum efficiency and output.
- Upgraded beam patterns engineered for real-world performance.

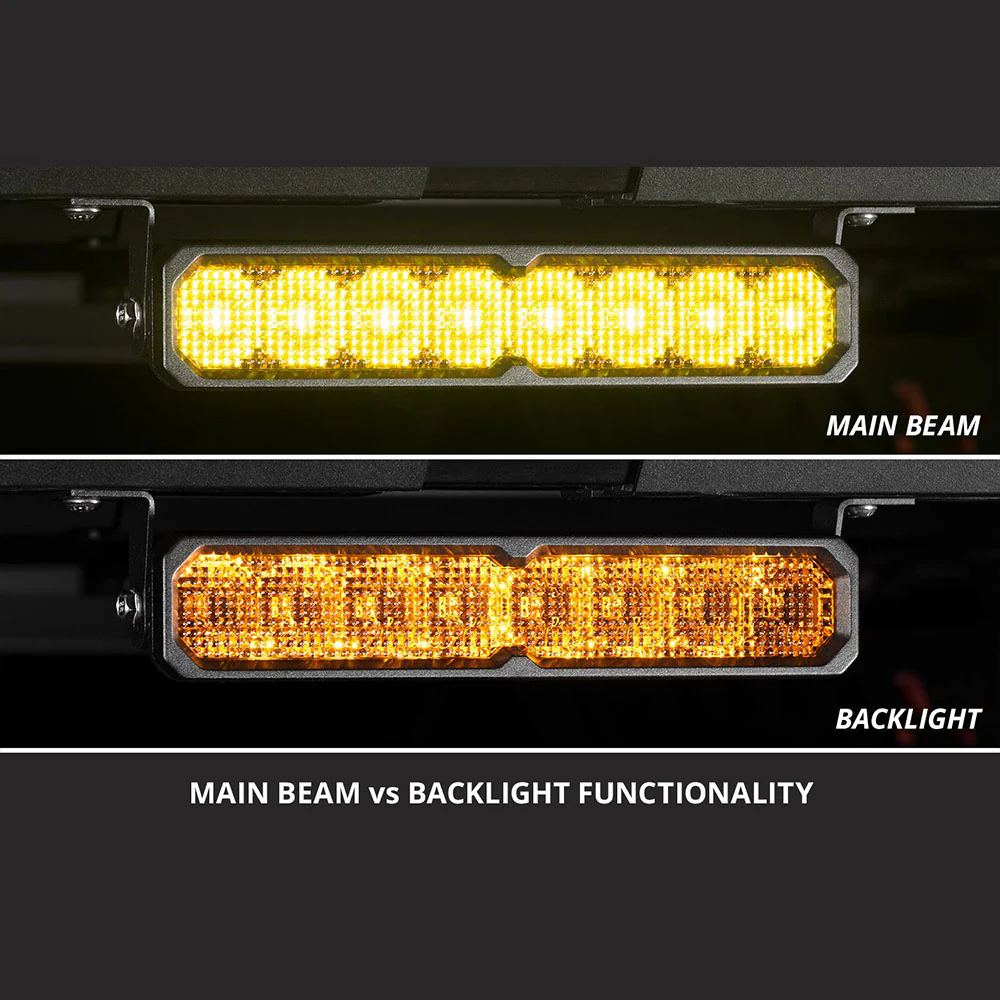

- True amber backlight provides unique accent lighting.
- Now available in Sport and Pro power levels.
- Durable aluminum housing with ASTM-standard powdercoat finish.
- Built for the extreme with IP69K waterproof rating.
Product Specs
- Color Temp (CCT): 3000K
- Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°, Flood, 100°x80°, Spot, 8°x8°
- Power (watts): Sport: 76.5, Pro: 105
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 5.98, Pro: 8.20
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure

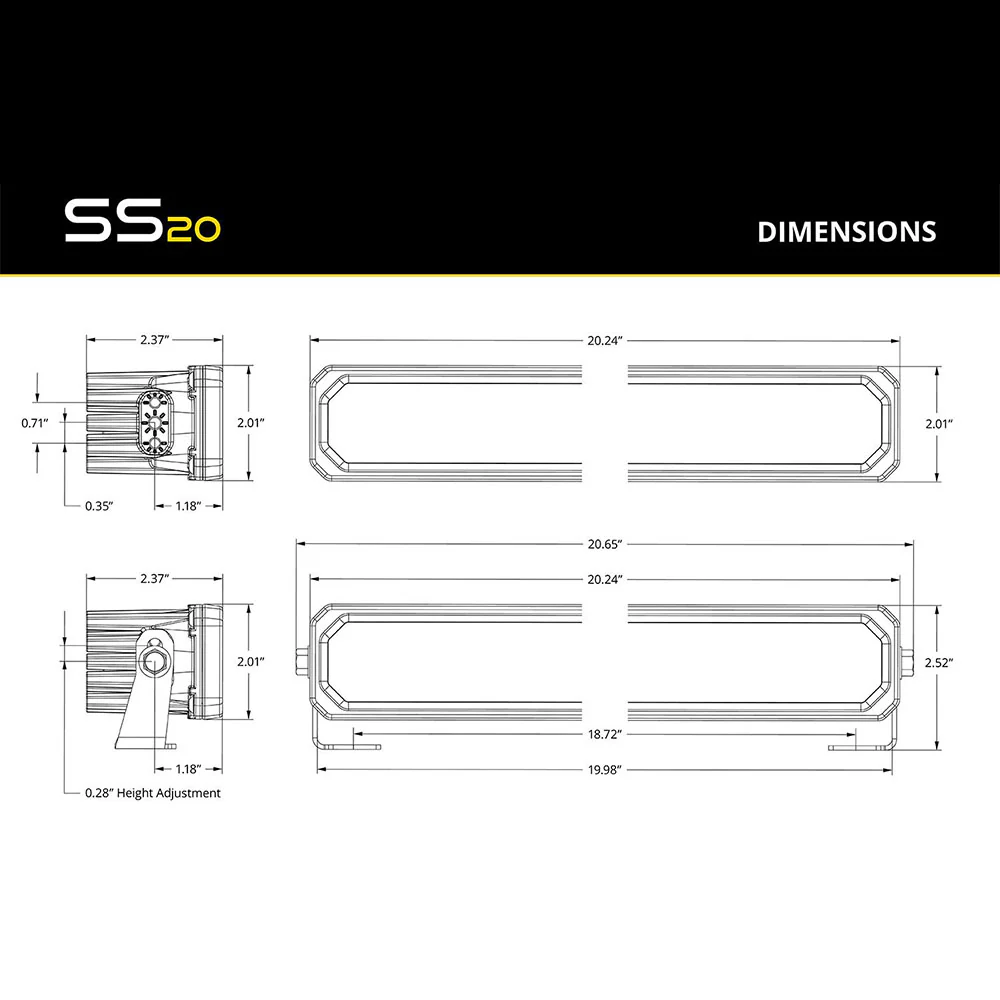

- Product Dimensions (in): 2.01x20.24x2.37
| Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SAE Driving Sport | 128,000 cd | 1,280 lux | 7,376 lm | 3000K |
| SAE Driving Pro | 161,500 cd | 1,615 lux | 25,088 lm | 3000K |
| Flood Sport | 4,000 cd | 40 lux | 7,376 lm | 3000K |
| Flood Pro | 7,000 cd | 70 lux | 25,088 lm | 3000K |
| Combo Sport | 36,000 cd | 360 lux | 7,376 lm | 3000K |
| Combo Pro | 56,000 cd | 560 lux | 25,088 lm | 3000K |
| Spot Sport | 289,000 cd | 2,890 lux | 7,376 lm | 3000K |
| Spot Pro | 336,000 cd | 3,360 lux | 25,088 lm | 3000K |
