SS20 TRD Pro Grille Lightbar Kit Tundra (2022+)
Product Description

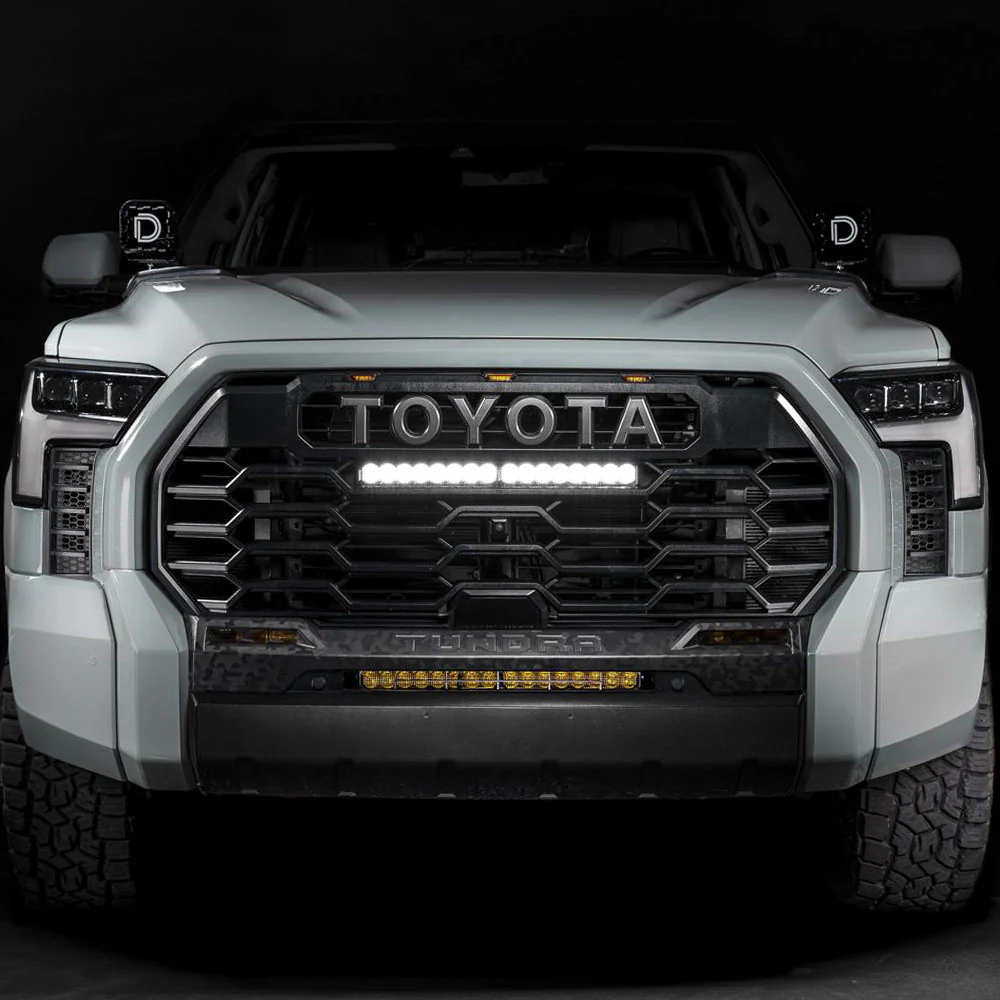

Transform your Tundra’s front end into a high-performance lighting system with the Diode Dynamics TRD-Pro Grille Lightbar Kit. Designed specifically for the 2022+ Tundra with a OEM TRD Pro grille, this kit fits cleanly into the grille, giving you impressive illumination without sacrificing factory integration. With a slim, durable design built for off-road use, it’s the perfect upgrade for those who demand performance and style.
Fitment Notes
- Fits all 2022+ Tundra's with OEM TRD Pro Grille
- Fits Hybrid and Non-Hybrid
- Only fits OEM TRD Pro Grille
- This kit will NOT interfere with the active grille shutters!
- If you are installing this kit on a TRD Pro, you will need to use the included wiring harness with a new switch to control this light bar. The factory switch cannot be used to control this light bar.

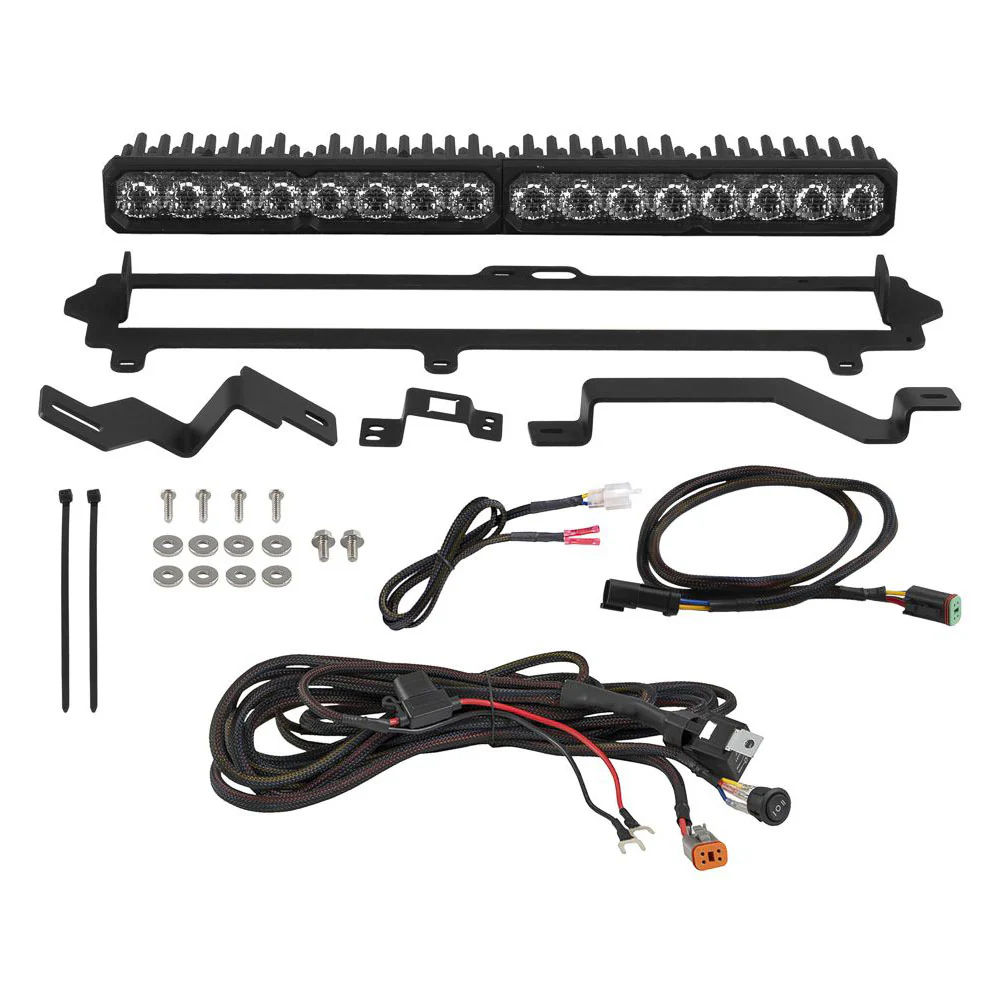

Included
- 1 - SS20 LED light bar
- 1 - Heavy-Duty Wiring Harness
- 1 - Pro grille bracket kit for Tundra 2022+
- Mounting Hardware
Product Specs
- Color Temp (CCT): 3000K, 6000K
- Beam Angle: Combo (Driving and Flood), Combo/Driving, 60°x30°, Driving, 20°x8°, Driving, 20°x12°
- Power (watts): Sport: 76.5, Pro: 105
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 5.98, Pro: 8.20
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES, Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure
Product Features
- Direct fit for the 2022+ Tundra TRD Pro grille — maintains clean factory look
- High-output LED bar delivers strong forward illumination for trail or road
- Rugged housing and sealed connector built for durability and harsh conditions
- Slim profile minimizes wind noise and preserves airflow to radiator
- Designed for ease of installation using factory mounting points/hardware
- Ideal upgrade for overland, off-road, or daily use with improved lighting performance
| Color/Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| Classic SS18 White Driving | 165,000 cd | 1,650 lux | 6,840 lm | 6000K White |
| Classic SS18 White Combo | 99,500 cd | 315 lux | 6,840 lm | 6000K White |
| SS20 White SAE Driving Sport | 146,500 cd | 1,465 lux | 7,376 lm | 6000K White |
| SS20 White SAE Driving Pro | 193,500 cd | 1,935 lux | 25,088 lm | 6000K White |
| SS20 Yellow SAE Driving Sport | 128,000 cd | 1,280 lux | 7,376 lm | 3000K Yellow |
| SS20 Yellow SAE Driving Pro | 161,500 cd | 1,615 lux | 25,088 lm | 3000K Yellow |
| SS20 White Combo Sport | 41,500 cd | 415 lux | 7,376 lm | 6000K White |
| SS20 White Combo Pro | 69,200 cd | 692 lux | 25,088 lm | 6000K White |
| SS20 Yellow Combo Sport | 36,000 cd | 360 lux | 7,376 lm | 3000K Yellow |
| SS20 Yellow Combo Pro | 56,000 cd | 560 lux | 25,088 lm | 3000K Yellow |
Select Light Color
Select Light Pattern
Select Power Level
From $174.98
Original: $499.95
-65%SS20 TRD Pro Grille Lightbar Kit Tundra (2022+)—
$499.95
$174.98More Images
