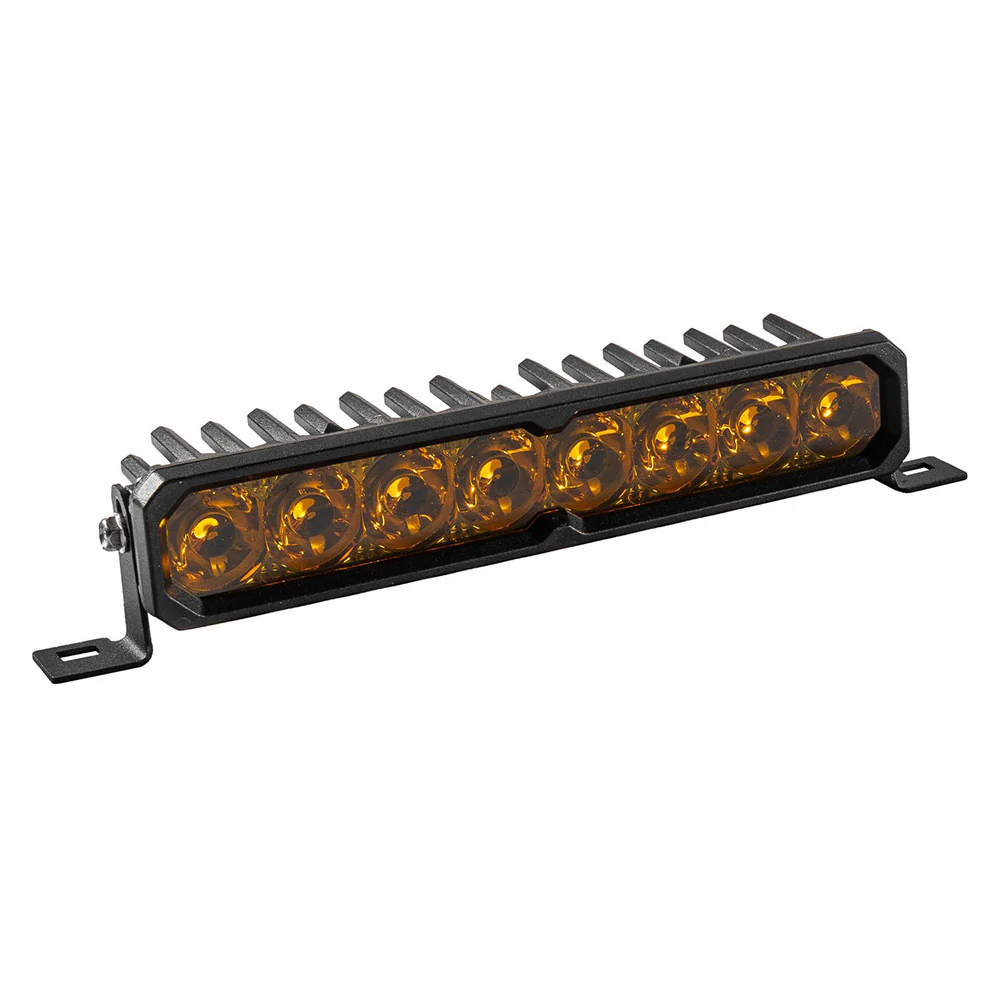

SS10 Yellow SAE/DOT LED Light Bar
Product Description
Add clean, legal, high-contrast lighting to your vehicle. Designed with yellow (≈ 3000 K) output to cut through fog, rain, and snow, this light bar blends purpose and style. Its slim profile lets you tuck it into tight spots while still delivering usable illumination for road and off-road use. From grille to bumper mounts, the SS10 gives you versatile and street-legal auxiliary lighting with performance you can count on.
Included
- One (1) LED light bar
- One (1) wire pigtail
- Universal bracket set

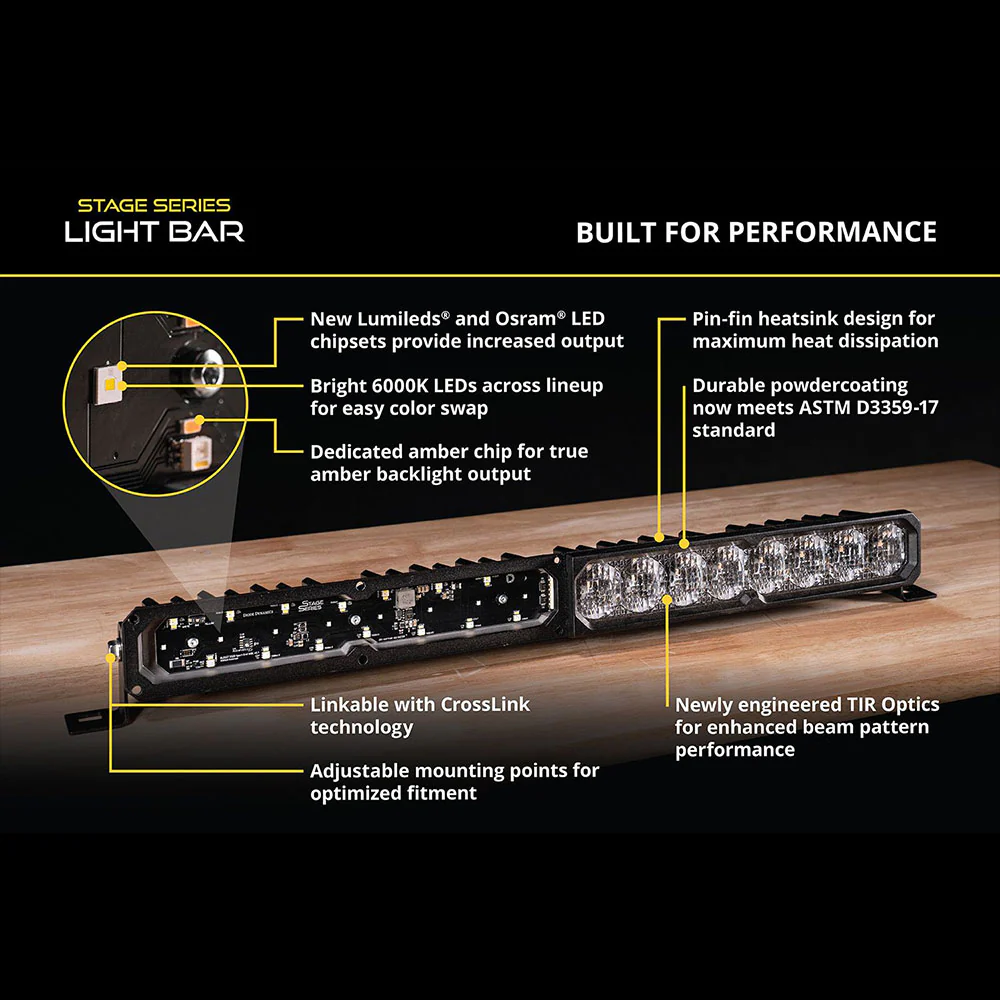

Product Features
- Patented TIR Optics for maximum efficiency and output.
- Upgraded beam patterns engineered for real-world performance.

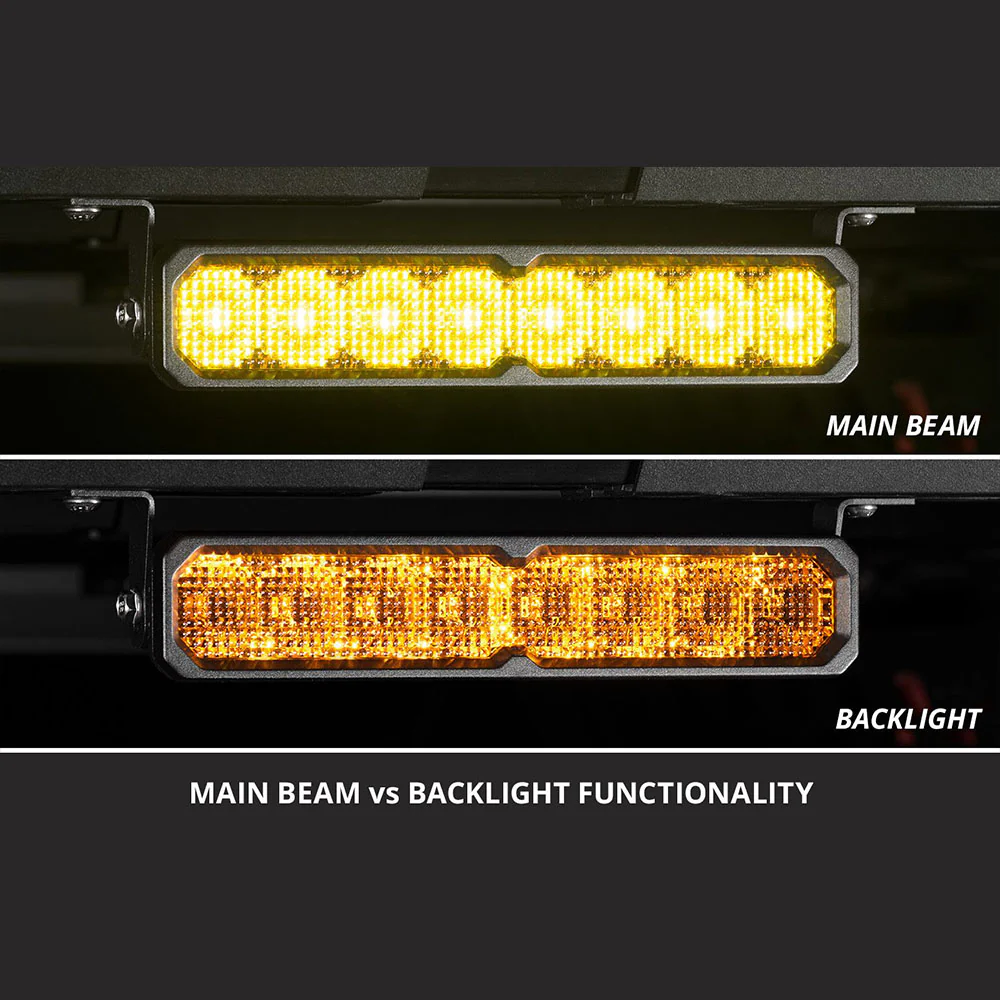

- True amber backlight provides unique accent lighting.
- Now available in Sport, Pro, and Max power levels.
- Durable aluminum housing with ASTM-standard powdercoat finish.
- Built for the extreme with IP69K waterproof rating.
Product Specs
- Color Temp (CCT): 3000K
- Beam Angle: Combo/Driving, 60°x30°, SAE Driving, 20°x12°, Flood, 100°x80°, Spot, 8°x8°
- Power (watts): Sport: 40, Pro: 51.5, Max: 61
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 3.13, Pro: 4.00, Max: 4.77
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure

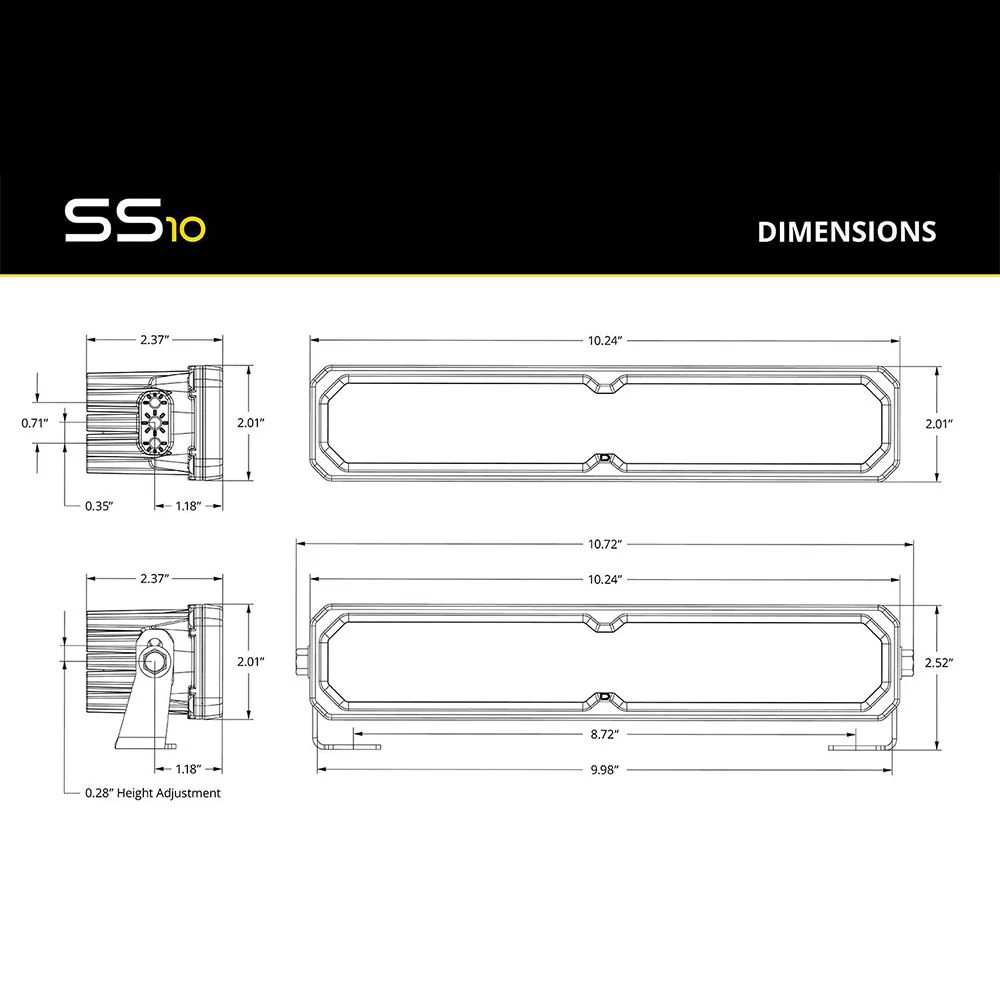

- Product Dimensions (in): 2.01x10.24x2.37
| Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SAE Driving Sport | 62,000 cd | 620 lux | 3,688 lm | 3000K |
| SAE Driving Pro | 86,800 cd | 868 lux | 12,544 lm | 3000K |
| SAE Driving Max | 100,000 cd | 1,000 lux | 15,840 lm | 3000K |
| Flood Sport | 2,000 cd | 20 lux | 3,688 lm | 3000K |
| Flood Pro | 3,330 cd | 33 lux | 12,544 lm | 3000K |
| Flood Max | 4,000 cd | 40 lux | 15,840 lm | 3000K |
| Combo Sport | 16,500 cd | 165 lux | 3,688 lm | 3000K |
| Combo Pro | 29,300 cd | 293 lux | 12,544 lm | 3000K |
| Combo Max | 32,300 cd | 323 lux | 15,840 lm | 3000K |
| Spot Sport | 166,000 cd | 1,660 lux | 3,688 lm | 3000K |
| Spot Pro | 175,500 cd | 1,755 lux | 12,544 lm | 3000K |
| Spot Max | 205,500 cd | 2,050 lux | 15,840 lm | 3000K |
