SS10 Stealth Lightbar Kit Tacoma (2024+)
Product Description
Elevate both style and function at your Tacoma’s front end with the Stealth Bumper Lightbar Kit. This purpose-designed kit integrates a high-performance LED light bar seamlessly into your front bumper, offering serious forward illumination without compromising factory aesthetics. Built for trail, highway, and everything between—this upgrade brings next-level lighting to your 2024+ Tacoma.
Fitment Notes
- Fits all 2024+ Tacoma's
- Fits Hybrid and Non-Hybrid

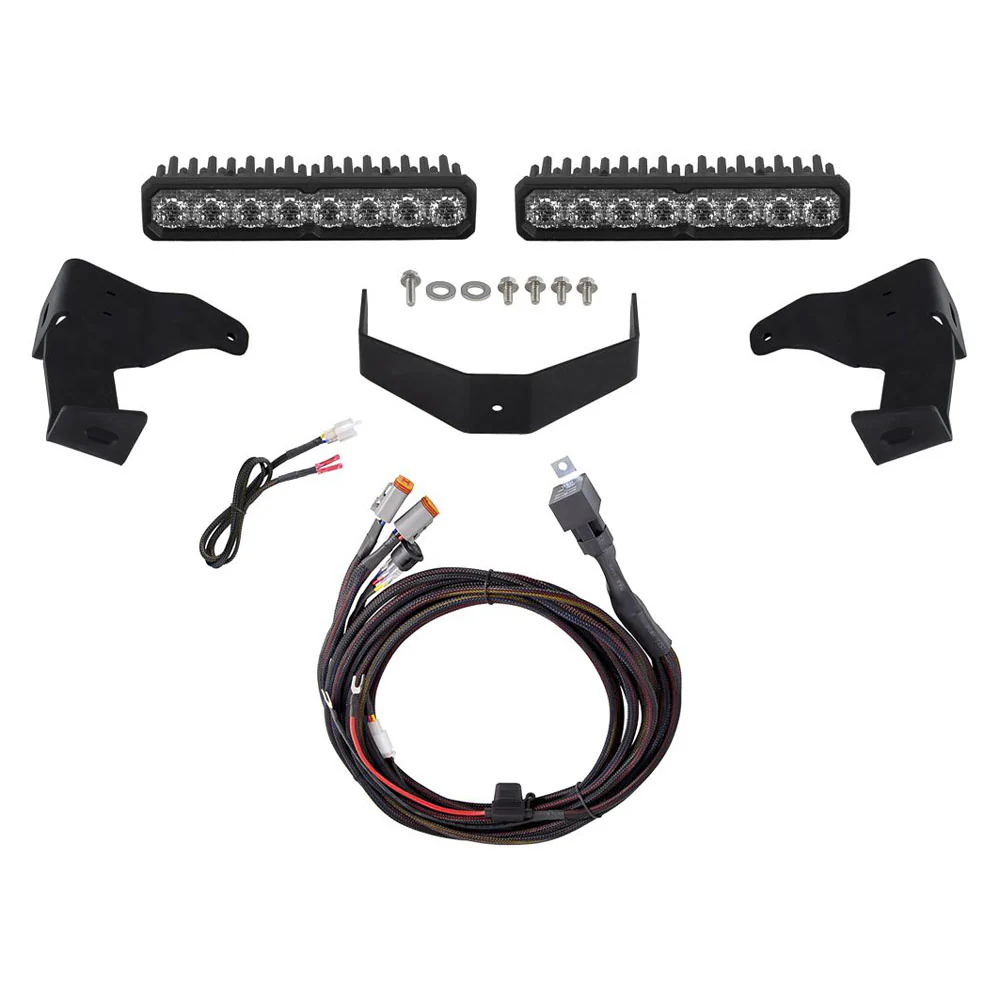

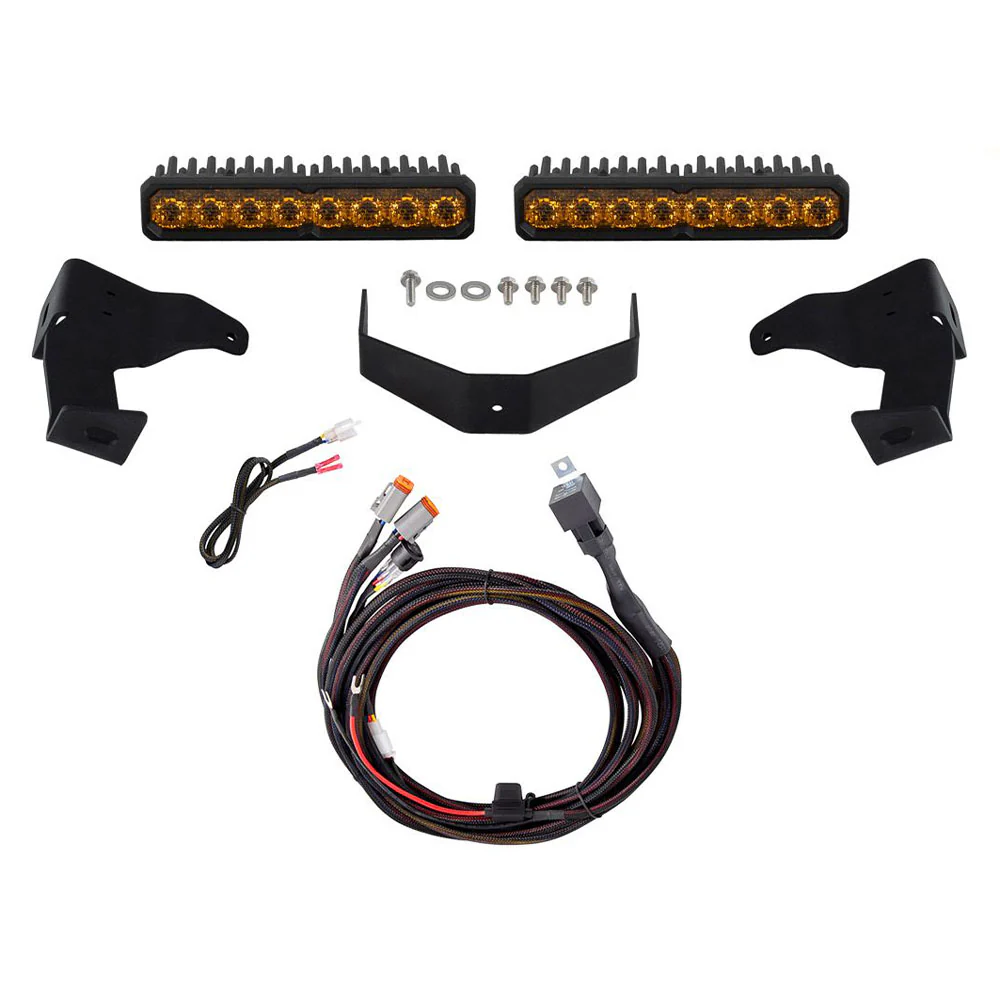

Included
- 1 - Stealth Bracket Kit
- 2 - SS10 LED Light Bar
- 1 - Heavy Duty Lightbar Wiring Harness
- Mounting Hardware
Product Specs
- Color Temp (CCT): 3000K, 6000K
- Beam Angle: Combo (Driving and Flood), Combo/Driving, 60°x30°, Driving, 20°x12°
- Power (watts): Sport: 76.5, Pro: 105, Max: 61
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 5.98, Pro: 8.20, Max: 4.77
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES, Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure
Product Features
- Flush-mounted design keeps your Tacoma’s front-end clean while delivering strong lighting output
- Strong beam projection improves visibility during off-road, low-light, and highway situations
- Robust, weather-proof construction handles trail abuse and varied climates
- Designed for streamlined installation using existing mounting points—no major modifications required
- Perfect for overland builds, daily drivers, or any Tacoma that demands premium lighting performance
| Color/Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| White SAE Driving Sport | 73,500 cd | 735 lux | 3,688 lm | 6000K White |
| White SAE Driving Pro | 103,500 cd | 1,035 lux | 12,544 lm | 6000K White |
| White SAE Driving Max | 115,000 cd | 1,050 lux | 15,840 lm | 6000K White |
| Yellow SAE Driving Sport | 62,000 cd | 620 lux | 3,688 lm | 3000K Yellow |
| Yellow SAE Driving Pro | 86,800 cd | 868 lux | 12,544 lm | 3000K Yellow |
| Yellow SAE Driving Max | 100,000 cd | 1,000 lux | 15,840 lm | 3000K Yellow |
| White Combo Sport | 21,400 cd | 214 lux | 3,688 lm | 6000K White |
| White Combo Pro | 38,500 cd | 385 lux | 12,544 lm | 6000K White |
| White Combo Max | 40,500 cd | 405 lux | 15,840 lm | 6000K White |
| Yellow Combo Sport | 16,500 cd | 165 lux | 3,688 lm | 3000K Yellow |
| Yellow Combo Pro | 29,300 cd | 293 lux | 12,544 lm | 3000K Yellow |
| Yellow Combo Max | 32,300 cd | 323 lux | 15,840 lm | 3000K Yellow |
Select Light Color
Select Light Pattern
Select Power Level
From $202.98
Original: $579.95
-65%SS10 Stealth Lightbar Kit Tacoma (2024+)—
$579.95
$202.98More Images
SS10 Stealth Lightbar Kit Tacoma (2024+)
Product Description
Elevate both style and function at your Tacoma’s front end with the Stealth Bumper Lightbar Kit. This purpose-designed kit integrates a high-performance LED light bar seamlessly into your front bumper, offering serious forward illumination without compromising factory aesthetics. Built for trail, highway, and everything between—this upgrade brings next-level lighting to your 2024+ Tacoma.
Fitment Notes
- Fits all 2024+ Tacoma's
- Fits Hybrid and Non-Hybrid
Included
- 1 - Stealth Bracket Kit
- 2 - SS10 LED Light Bar
- 1 - Heavy Duty Lightbar Wiring Harness
- Mounting Hardware
Product Specs
- Color Temp (CCT): 3000K, 6000K
- Beam Angle: Combo (Driving and Flood), Combo/Driving, 60°x30°, Driving, 20°x12°
- Power (watts): Sport: 76.5, Pro: 105, Max: 61
- Operating Voltage: 9-30V
- Current (amps @ 12.8V): Sport: 5.98, Pro: 8.20, Max: 4.77
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES, Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure
Product Features
- Flush-mounted design keeps your Tacoma’s front-end clean while delivering strong lighting output
- Strong beam projection improves visibility during off-road, low-light, and highway situations
- Robust, weather-proof construction handles trail abuse and varied climates
- Designed for streamlined installation using existing mounting points—no major modifications required
- Perfect for overland builds, daily drivers, or any Tacoma that demands premium lighting performance
| Color/Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| White SAE Driving Sport | 73,500 cd | 735 lux | 3,688 lm | 6000K White |
| White SAE Driving Pro | 103,500 cd | 1,035 lux | 12,544 lm | 6000K White |
| White SAE Driving Max | 115,000 cd | 1,050 lux | 15,840 lm | 6000K White |
| Yellow SAE Driving Sport | 62,000 cd | 620 lux | 3,688 lm | 3000K Yellow |
| Yellow SAE Driving Pro | 86,800 cd | 868 lux | 12,544 lm | 3000K Yellow |
| Yellow SAE Driving Max | 100,000 cd | 1,000 lux | 15,840 lm | 3000K Yellow |
| White Combo Sport | 21,400 cd | 214 lux | 3,688 lm | 6000K White |
| White Combo Pro | 38,500 cd | 385 lux | 12,544 lm | 6000K White |
| White Combo Max | 40,500 cd | 405 lux | 15,840 lm | 6000K White |
| Yellow Combo Sport | 16,500 cd | 165 lux | 3,688 lm | 3000K Yellow |
| Yellow Combo Pro | 29,300 cd | 293 lux | 12,544 lm | 3000K Yellow |
| Yellow Combo Max | 32,300 cd | 323 lux | 15,840 lm | 3000K Yellow |
