SS30 Stealth Lightbar Kit Tacoma (2016-2023)
Product Description

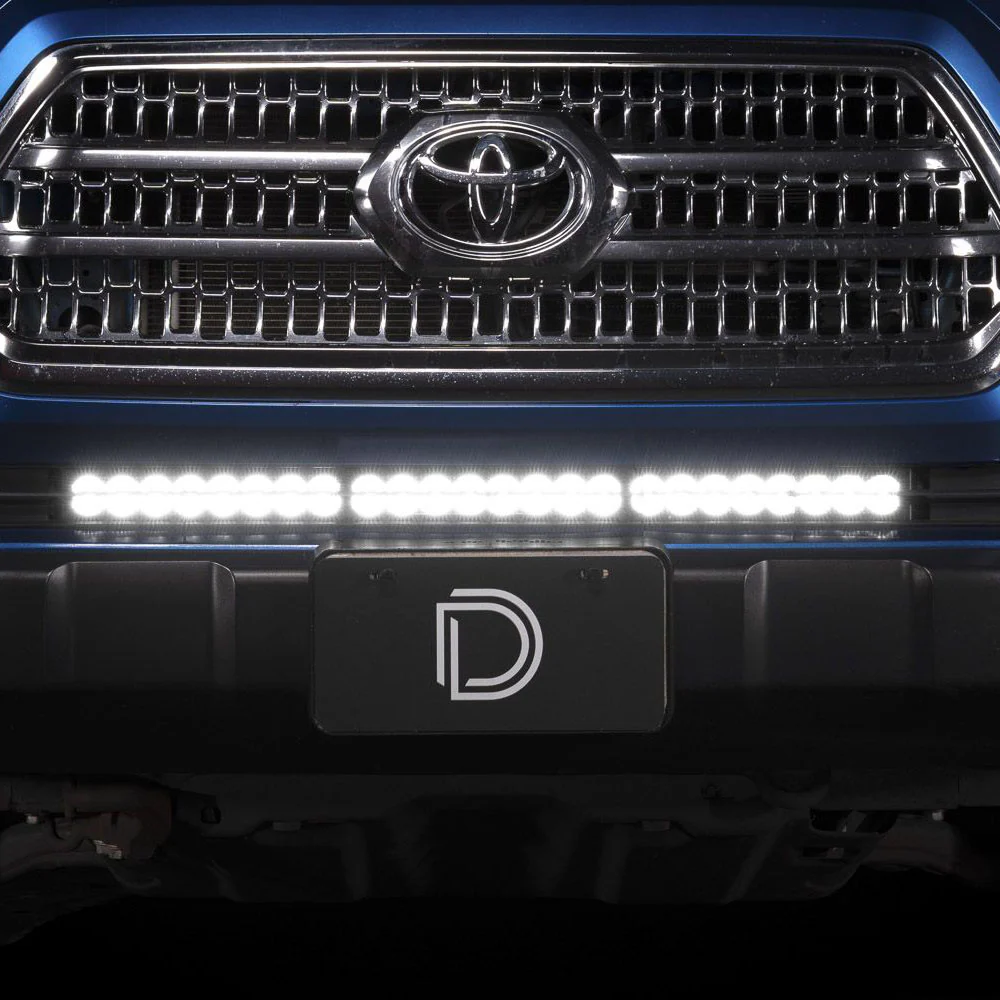

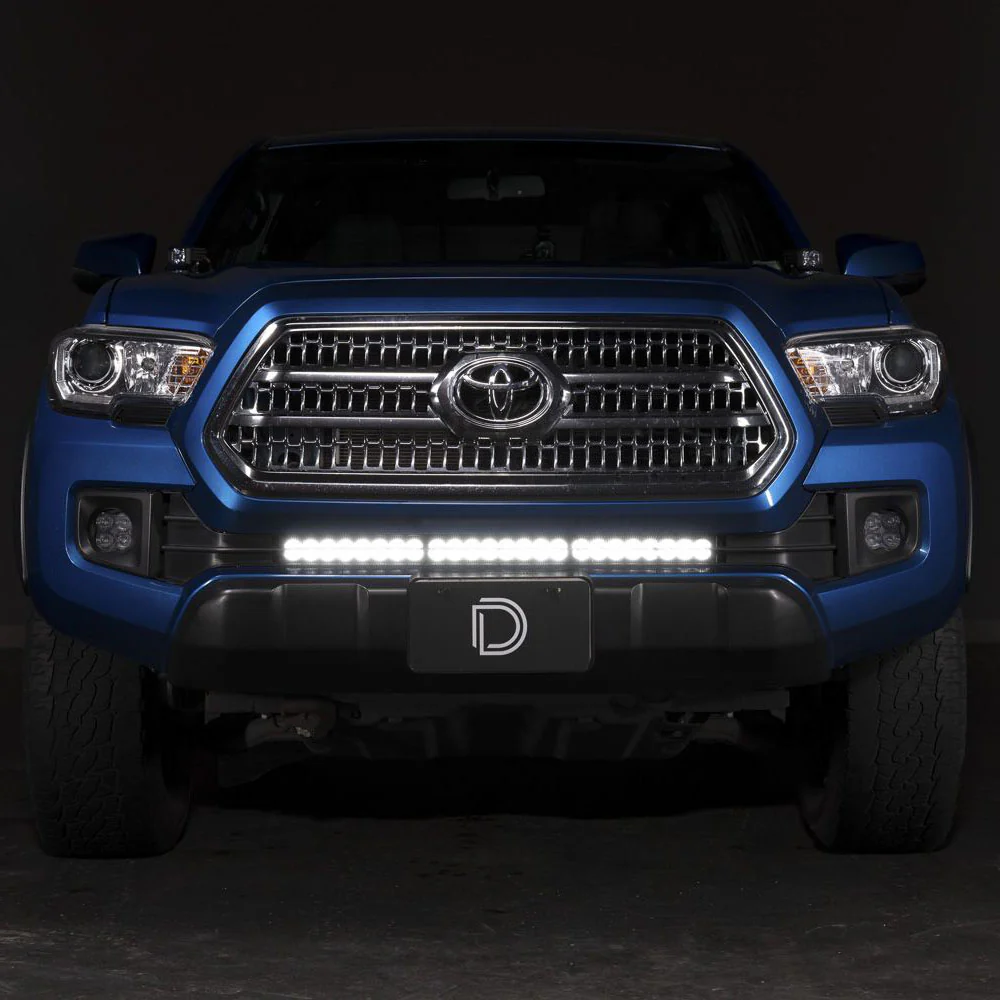

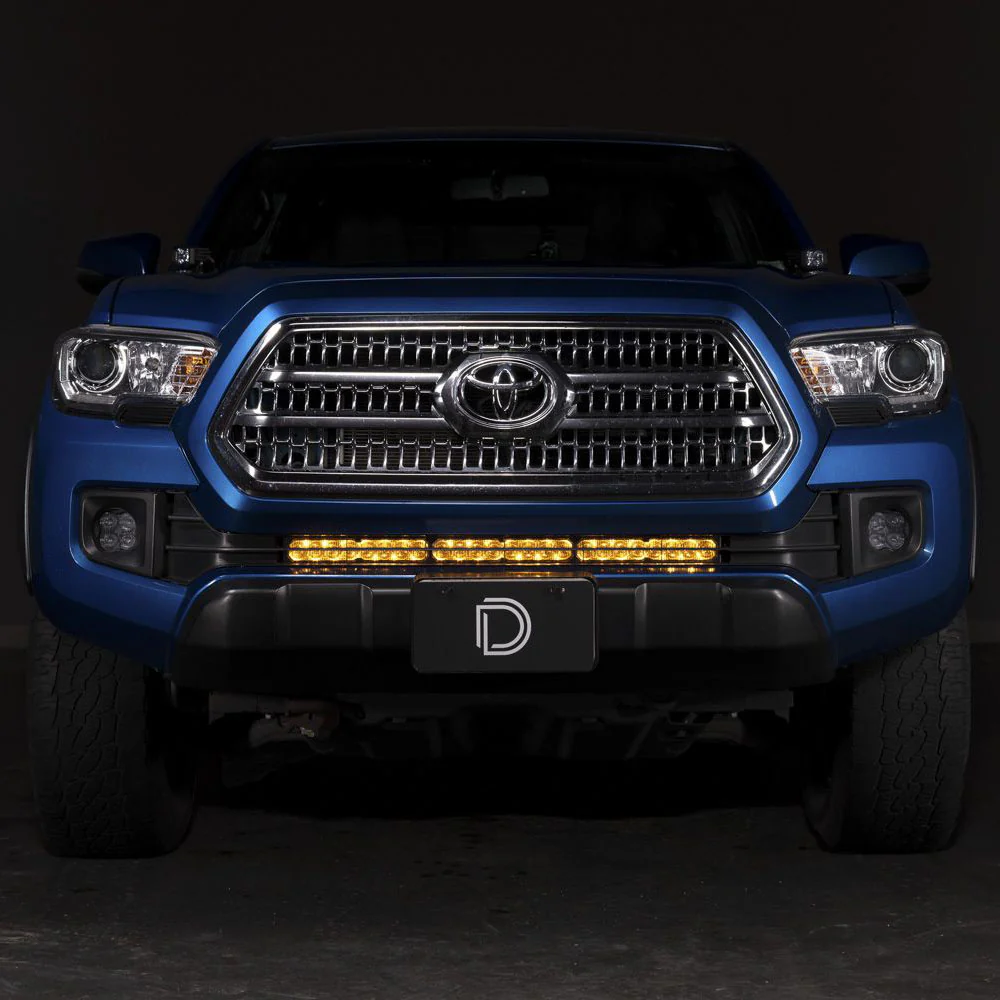

Elevate both style and function at your Tacoma’s front end with the Stealth Bumper Lightbar Kit. This purpose-designed kit integrates a high-performance LED light bar seamlessly into your front bumper, offering serious forward illumination without compromising factory aesthetics. Built for trail, highway, and everything between—this upgrade brings next-level lighting to your Tacoma.
Fitment Notes
- Fits all 2016-2023+ Tacoma's

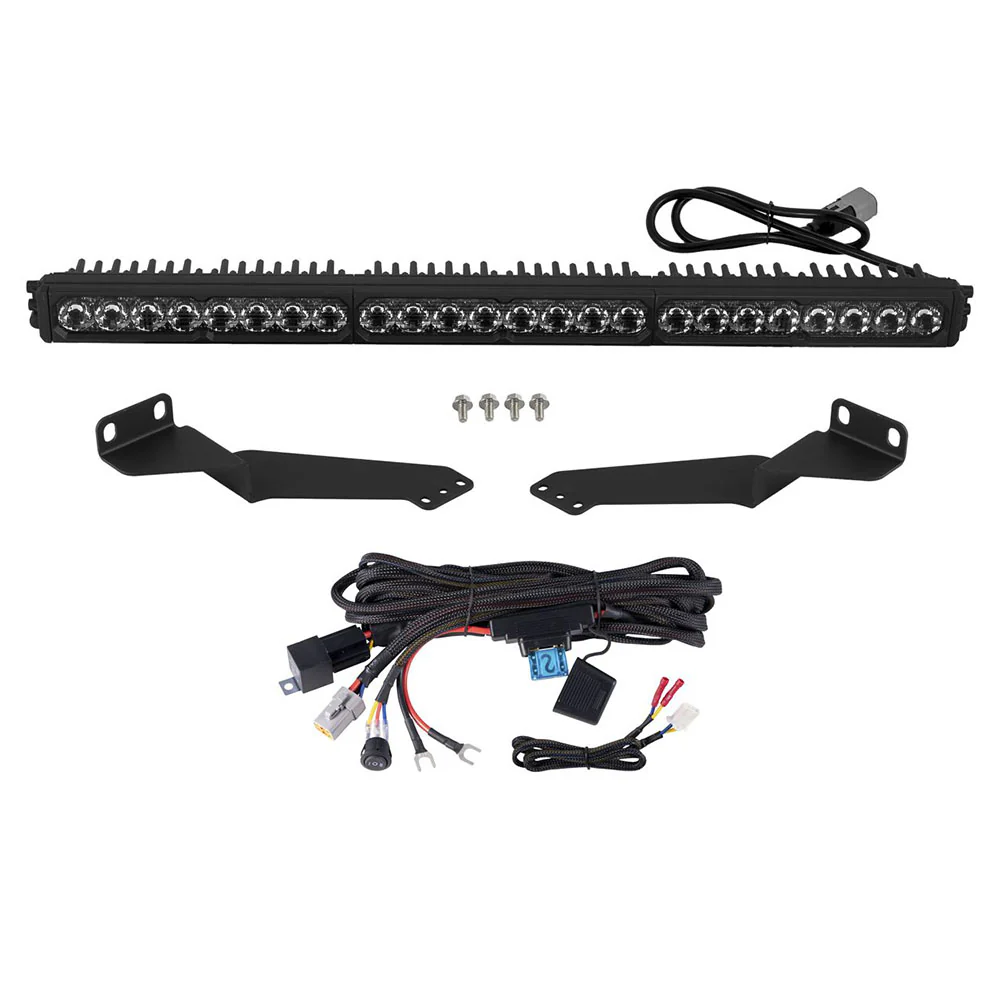

Included
- 1 - Stealth Bracket Kit
- 1 - SS30 LED Light Bar
- 1 - Heavy Duty Lightbar Wiring Harness
- Mounting Hardware
Product Specs
- Color Temp (CCT): 3000K, 6000K

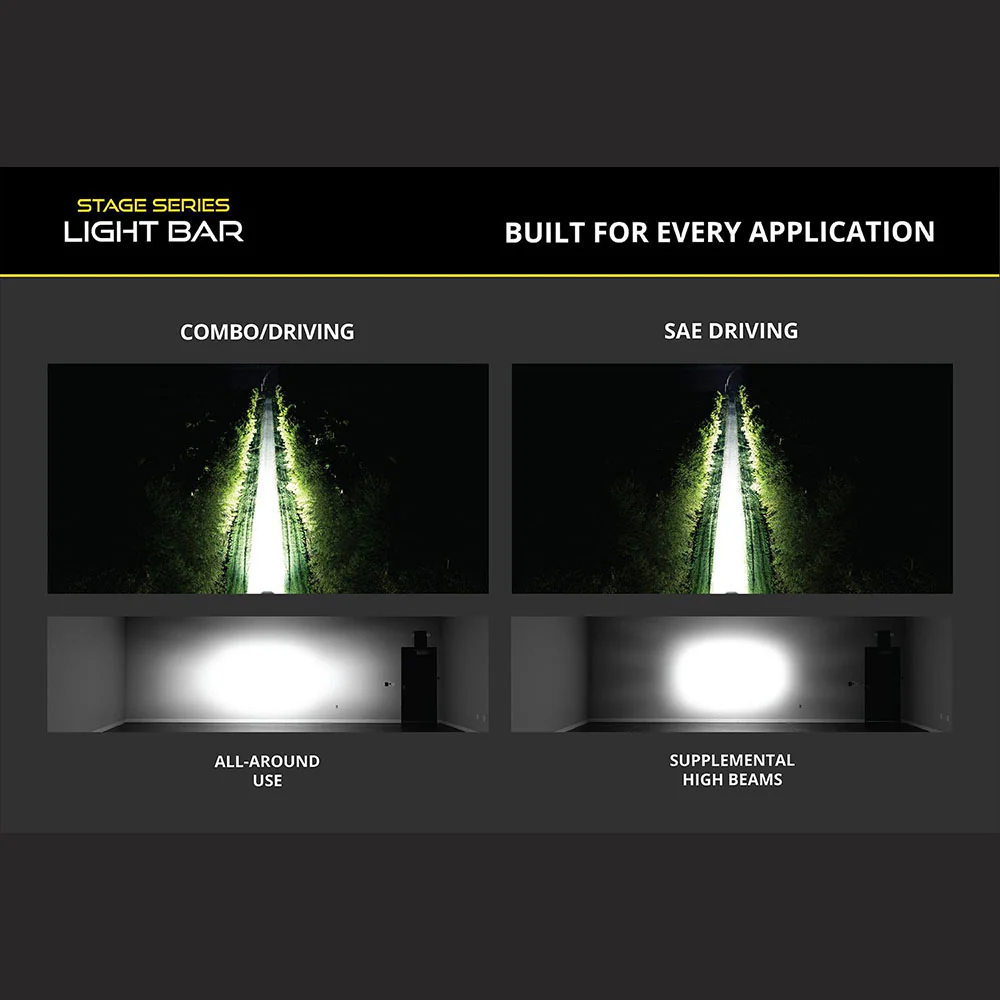

- Beam Angle: Combo (Driving and Flood), Driving, 20°x8°
- Power (watts): Sport: 120, Pro: 165
- Operating Voltage: 9-24V
- Current (amps @ 12.8V): Sport: 9.38, Pro: 12.90
- Polarity: Polarity Specific
- Operating Temperature: -40C to 85C (-40F to 185F)
- LED Emitter: Luxeon Z ES, Osram Ostar Projection Compact, Lumileds Automotive Grade LED
- Connector(s): Deutsch DT Input
- Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
- Cooling: Passive, heatsink
- Intrusion Ratings: IP69K Waterproof, High Pressure
Product Features
- Flush-mounted design keeps your Tacoma’s front-end clean while delivering strong lighting output
- Strong beam projection improves visibility during off-road, low-light, and highway situations
- Robust, weather-proof construction handles trail abuse and varied climates
- Designed for streamlined installation using existing mounting points—no major modifications required
- Perfect for overland builds, daily drivers, or any Tacoma that demands premium lighting performance
| Color/Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| SS30 White SAE Driving Sport | 233,000 cd | 2,330 lux | 11,064 lm | 6000K White |
| SS30 White SAE Driving Pro | 288,000 cd | 2,880 lux | 37,632 lm | 6000K White |
| SS30 Yellow SAE Driving Sport | 181,000 cd | 1,810 lux | 11,064 lm | 3000K Yellow |
| SS30 Yellow SAE Driving Pro | 242,000 cd | 2,420 lux | 37,632 lm | 3000K Yellow |
| SS30 White Combo Sport | 120,000 cd | 1,200 lux | 11,064 lm | 6000K White |
| SS30 White Combo Pro | 163,500 cd | 1,635 lux | 37,632 lm | 6000K White |
| SS30 Yellow Combo Sport | 93,000 cd | 930 lux | 11,064 lm | 3000K Yellow |
| SS30 Yellow Combo Pro | 127,000 cd | 1,270 lux | 37,632 lm | 3000K Yellow |

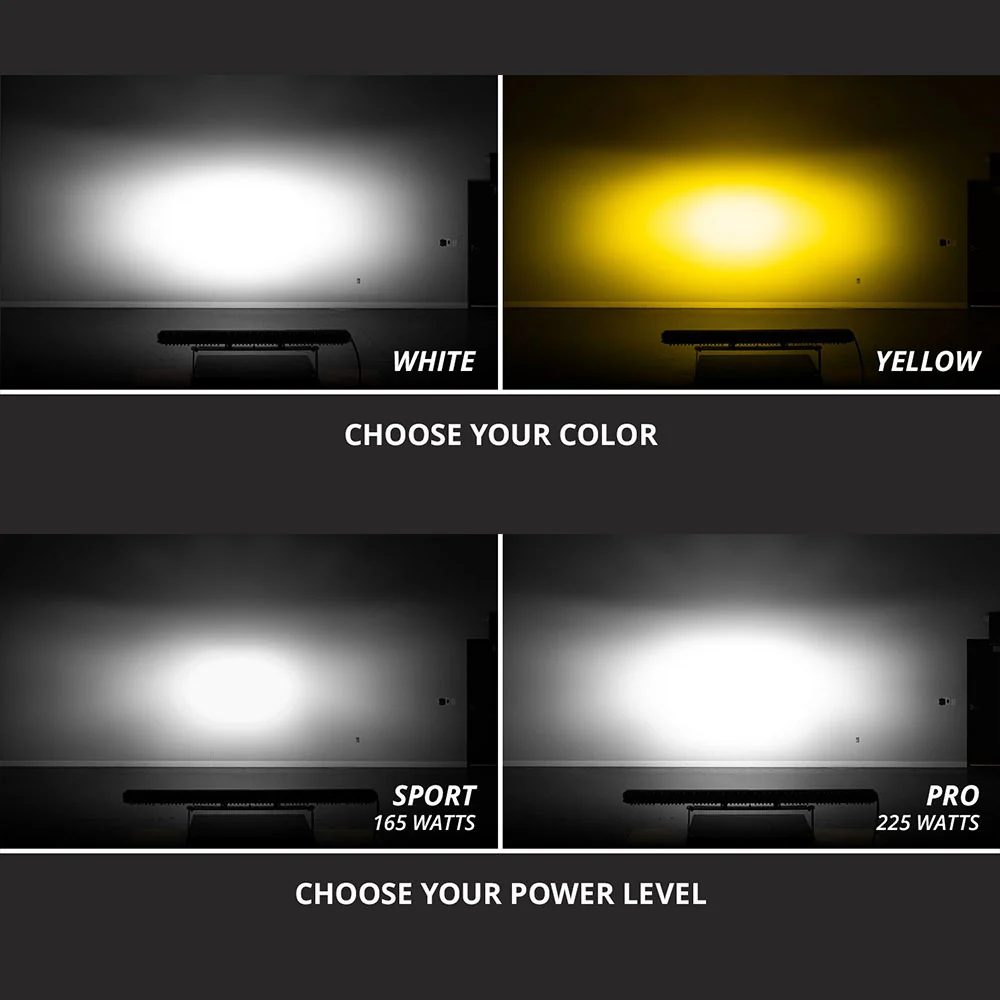

Select Light Color
