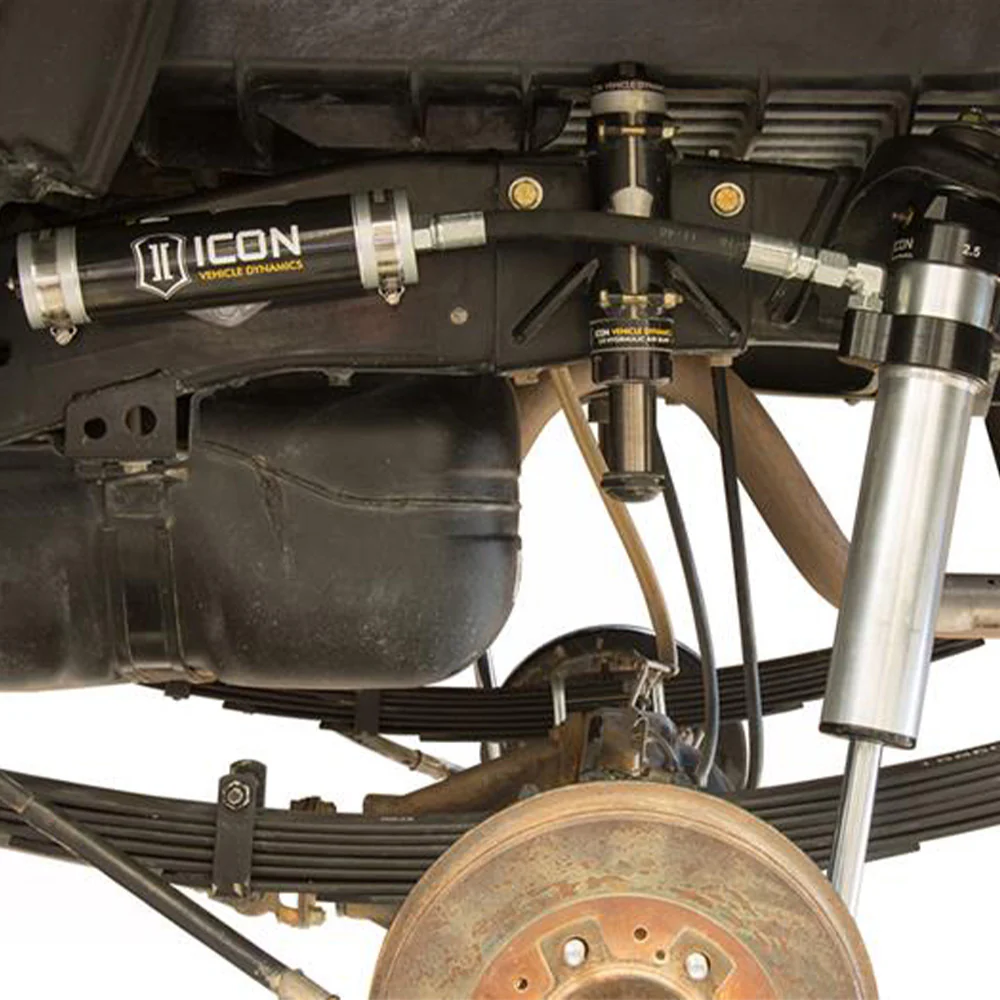

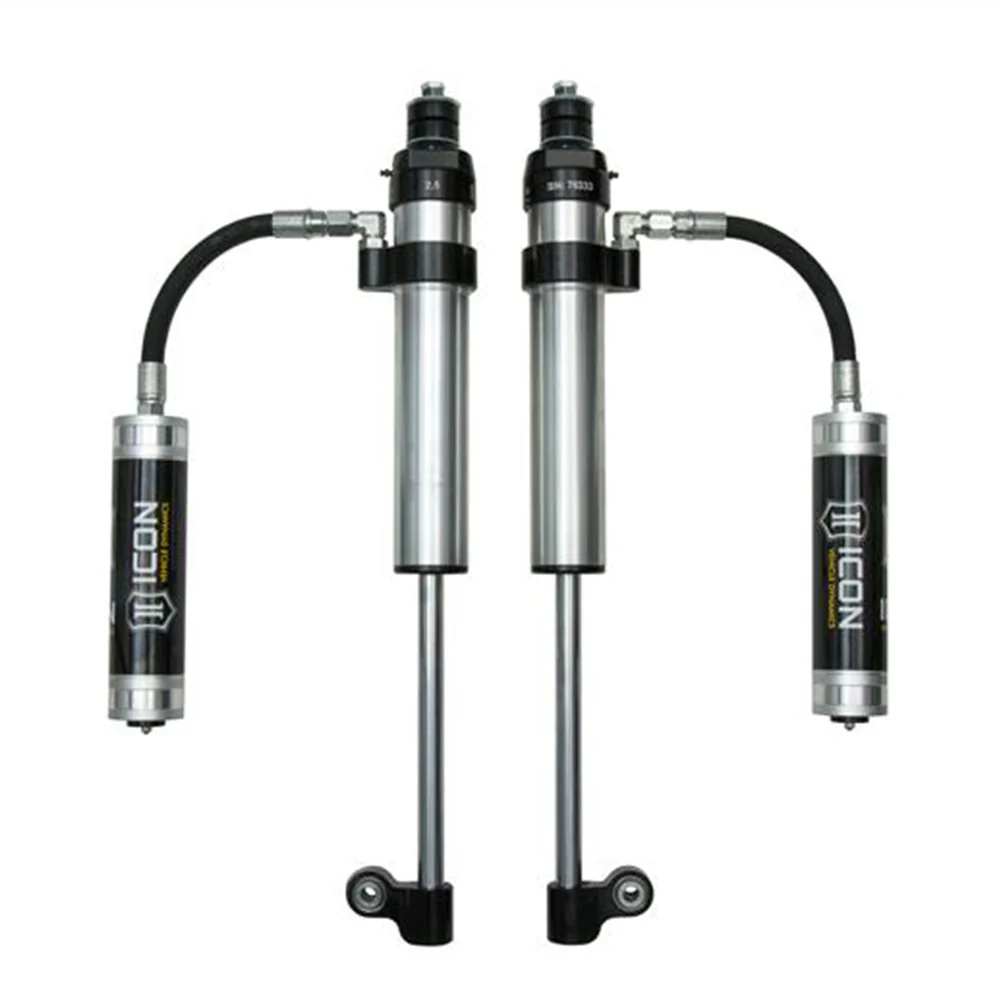

2.5 Aluminum Series RXT Shocks Tacoma (2016-2023)
Product Description
These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
Included
- 2 - RXT rear 2.5 RR shocks
- 2 - Reservoir mounting plate
- 2 - 3/8" split lock washer
- 2 - 3/8-12 x .750 self tap bolt
- 2 - RXT heavy duty stem bushing kit
- 1 - Hose clamp kit
Product Features
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- Double-sealed Schrader caps reduce risk of damage
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
Fitment Notes
- ICON Multi-Rate Leaf Springs Part # 158505 (QTY of 2) required for installation
- Compatible with 0-2.625" of rear lift provided by ICON Multi-Rate Leaf Springs
Original: $1,329.75
-65%$1,329.75
$465.41More Images
